Float Level

Invert air horn assembly (without gasket). Allow weight of float assembly to seat inlet valve. See Fig 1 . Distance from bottom edge of float to surface of air horn should be .88" (22.4mm). If not, adjust by adding or removing shims under inlet needle seat.

NOTE: Distance from bottom edge of float to surface of air horn has been revised as per TSB # 14-04-88 dated April 18, 1988.

NOTE: All other adjustments are factory made and should not be changed in service.

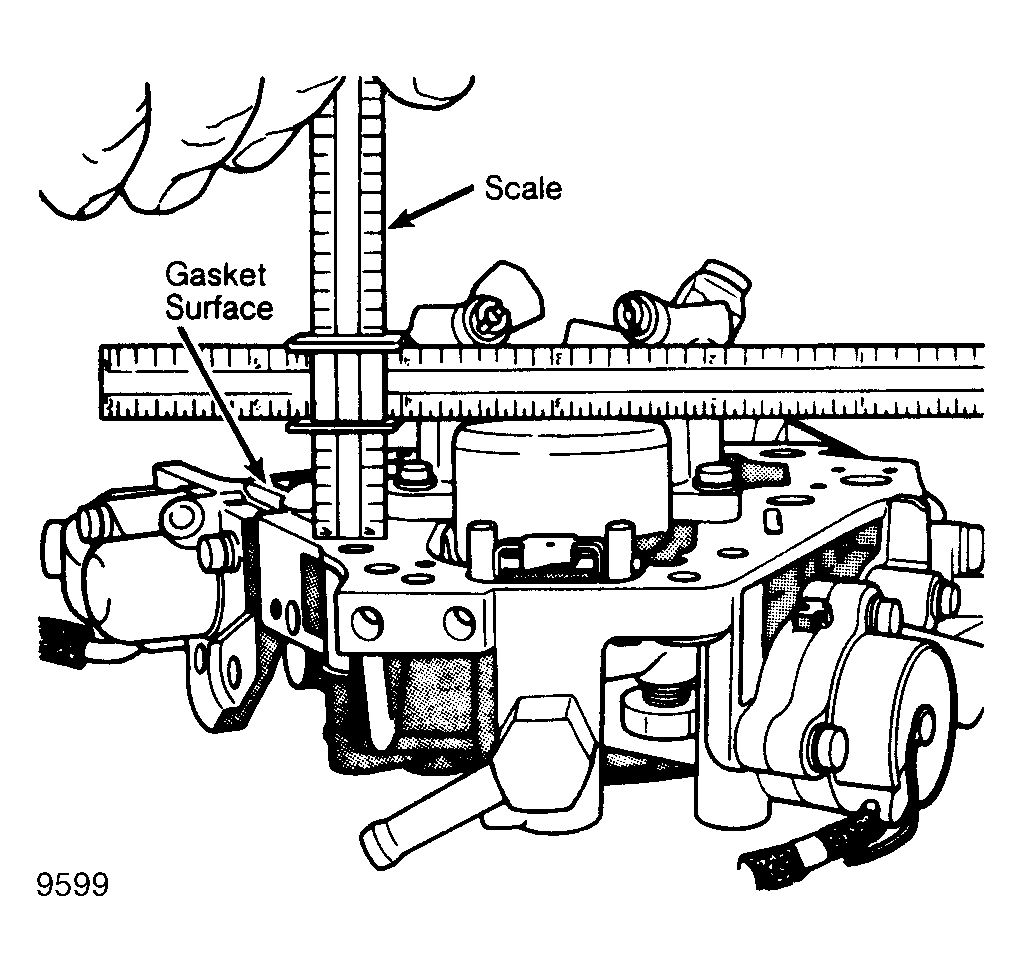

Fig 1: Float Level Adjustment Make measurement without gasket. Courtesy of Chrysler Motors.
