Ignition System - MITSUBISHI Electronic: Overhaul: Disassembly

  1. Remove centrifugal advance components as an assembly by removing bolt in top of shaft. Due to extreme tension on bolt, a socket or box wrench should be used for this purpose.
  2. If governor assembly is further disassembled, ensure 2 different springs are properly identified for correct reassembly. Remove wire clamp screw. Remove clamp. Remove 2 pick-up coil and IC igniter mounting screws. Remove pick-up coil and IC igniter as an assembly.

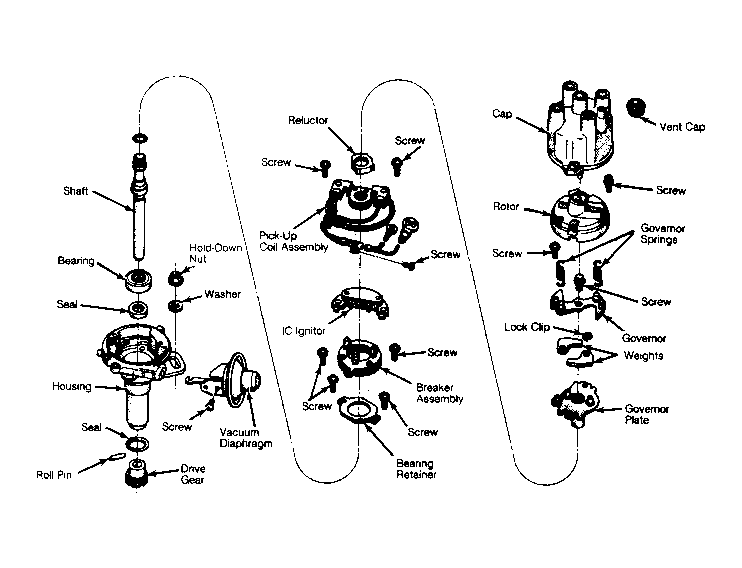

    Fig 1: Exploded View of Distributor Used on 2.6L Engines
    G15154Courtesy of CHRYSLER MOTORS.
  3. Remove 2 vacuum advance diaphragm mounting screws. Disengage vacuum diaphragm from breaker assembly. Remove 2 screws retaining breaker assembly. Lift assembly from distributor housing. Place breaker assembly on clean shop towel.
  4. Remove 2 screws from bearing retainer plate. Lift out plate. Mark location of drive gear on distributor shaft for reassembly reference. Drive out roll pin. Remove drive gear. Lift distributor shaft and bearing assembly from housing. Remove housing seal.
