Servo Ground Test

Connect alligator clip of 12-volt test light to positive post of the battery. Touch probe to metal servo cover. If a good ground to servo is present, test light will illuminate.

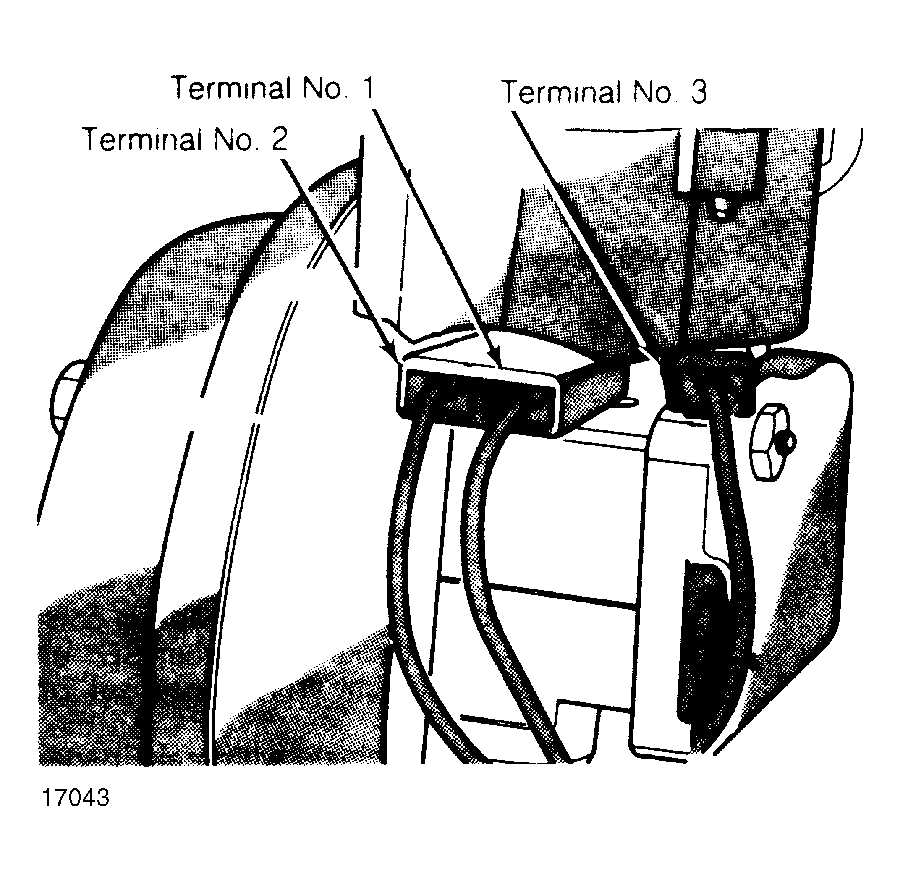

Fig 1: Servo Terminal Testing Numbers
G17043Courtesy of CHRYSLER MOTORS.
