Throttle Position Sensor (TPS)

Disconnect battery and TPS connector. Remove 2 mounting screws and sensor from throttle body. To install, reverse removal procedure.

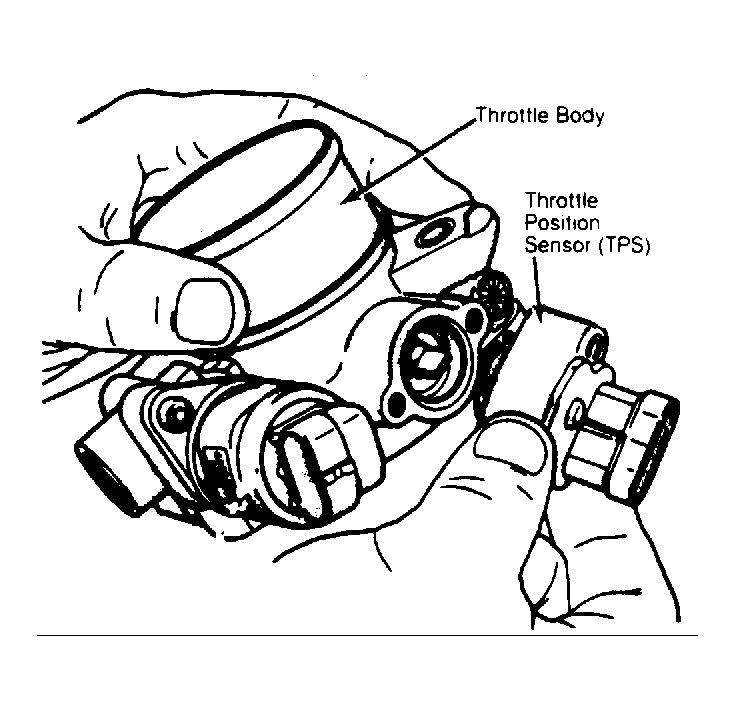

Fig 1: Removing TPS From Throttle Body
G12517Courtesy of CHRYSLER MOTORS.
