Aspirator Air System: Description

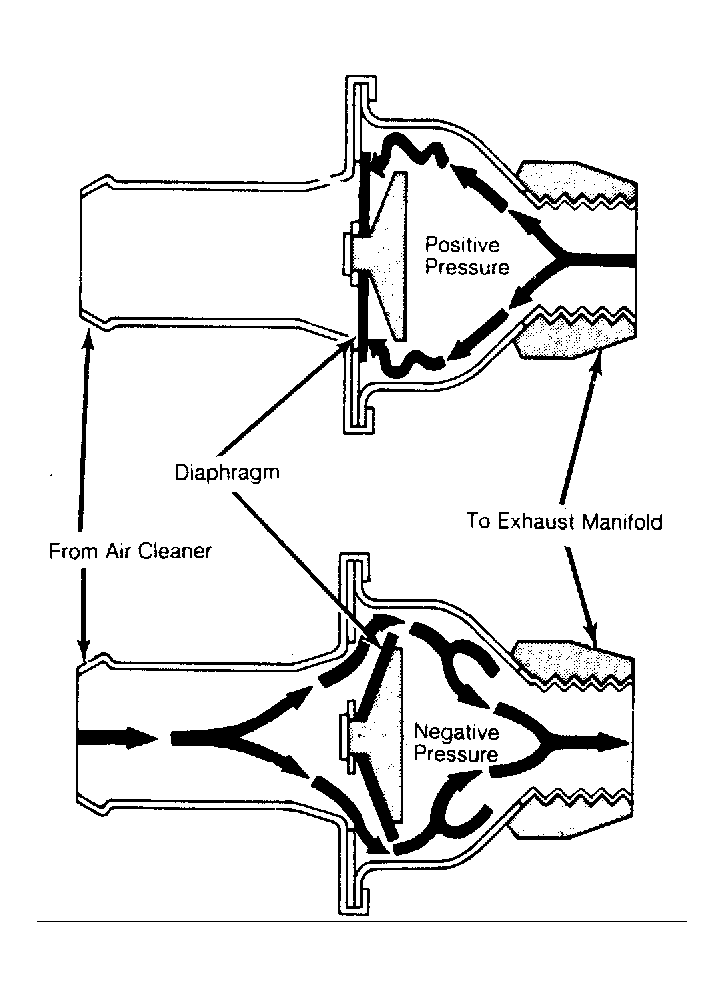

Aspirator air system consists of an aspirator valve and an aspirator tube assembly. Aspirator valve uses exhaust pressure pulsation to draw air into exhaust system, reducing carbon monoxide (CO) and hydrocarbon (HC) emissions.
Tube assembly connects aspirator valve to air cleaner at one end, and exhaust manifold at the other end.
