Wiring Diagrams

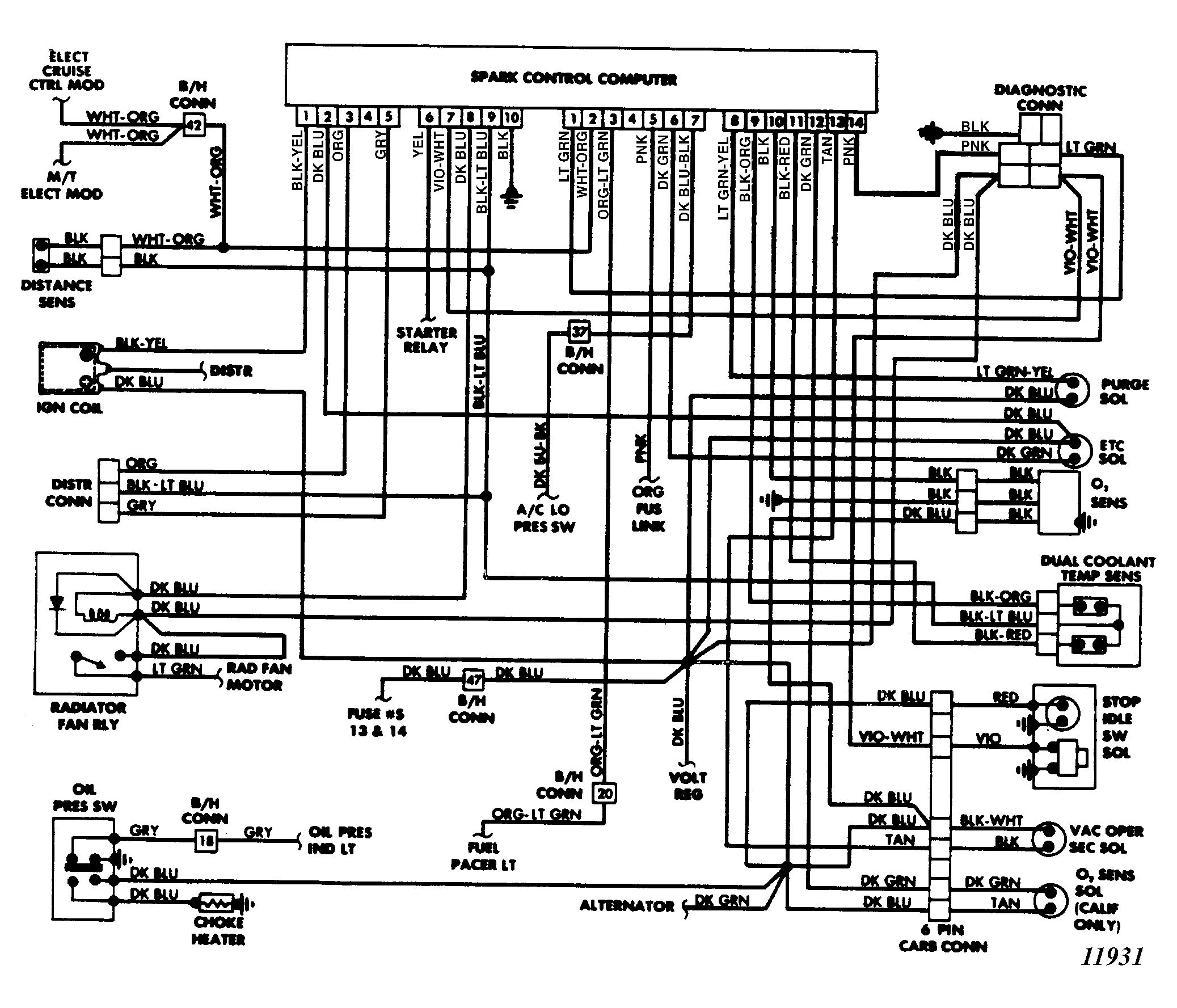

Fig 1: 2.2L FWD EFC System Wiring Diagram

G11931

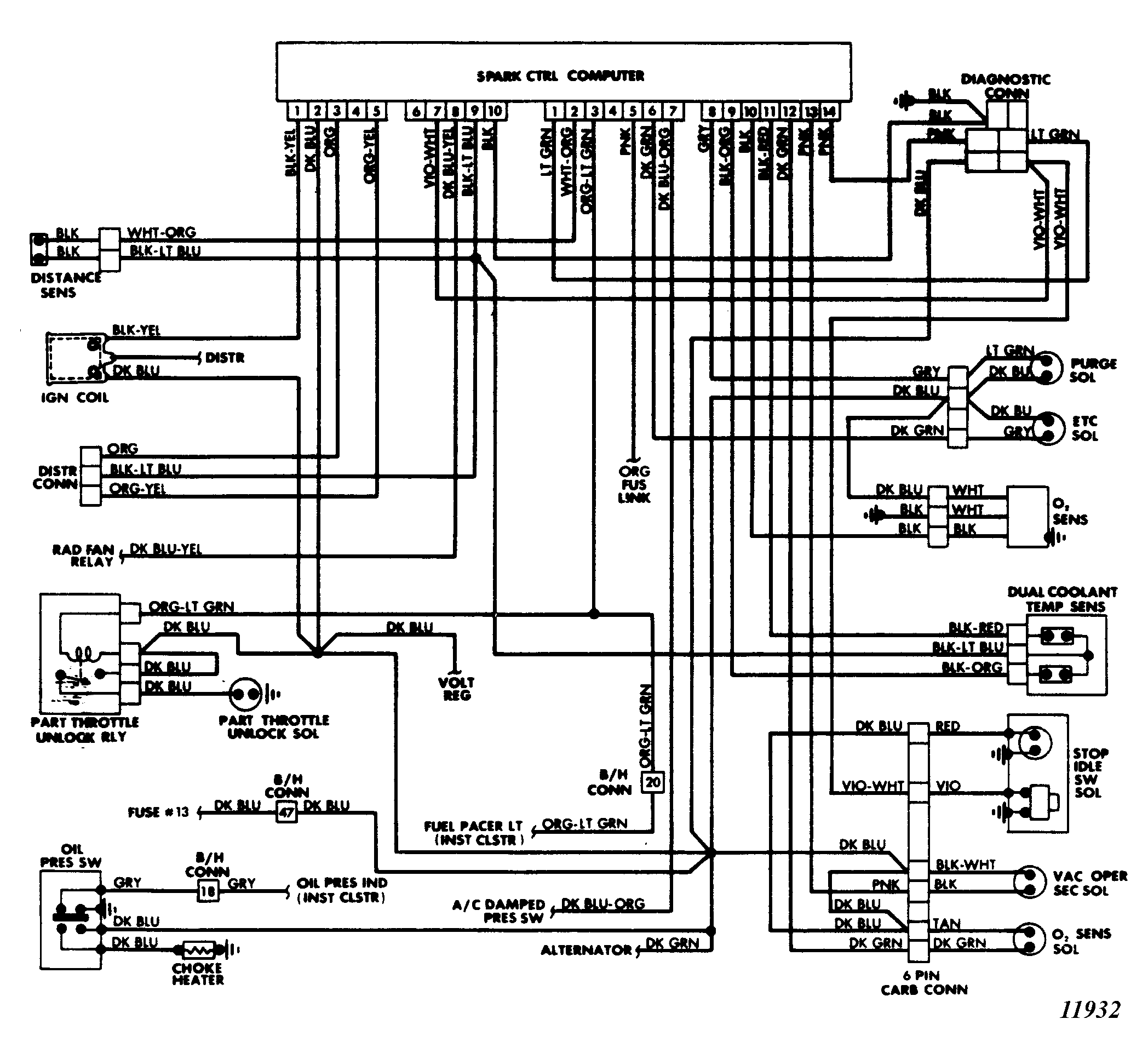

Fig 2: Dakota RWD 2.2L EFC System Wiring Diagram

G11932
