Output Signal Charts

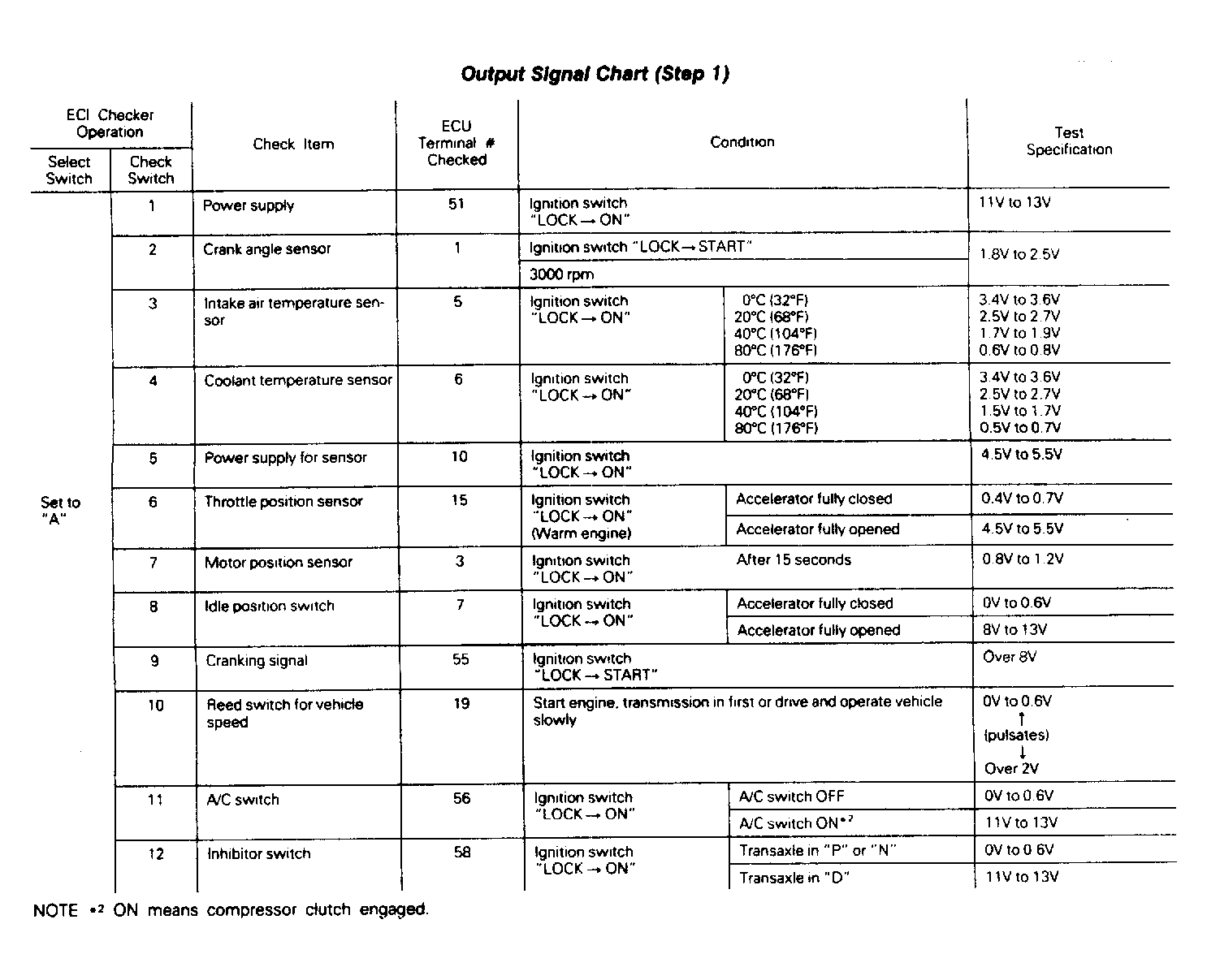

Fig 1: Output Signal Chart (Step 1)

G61430

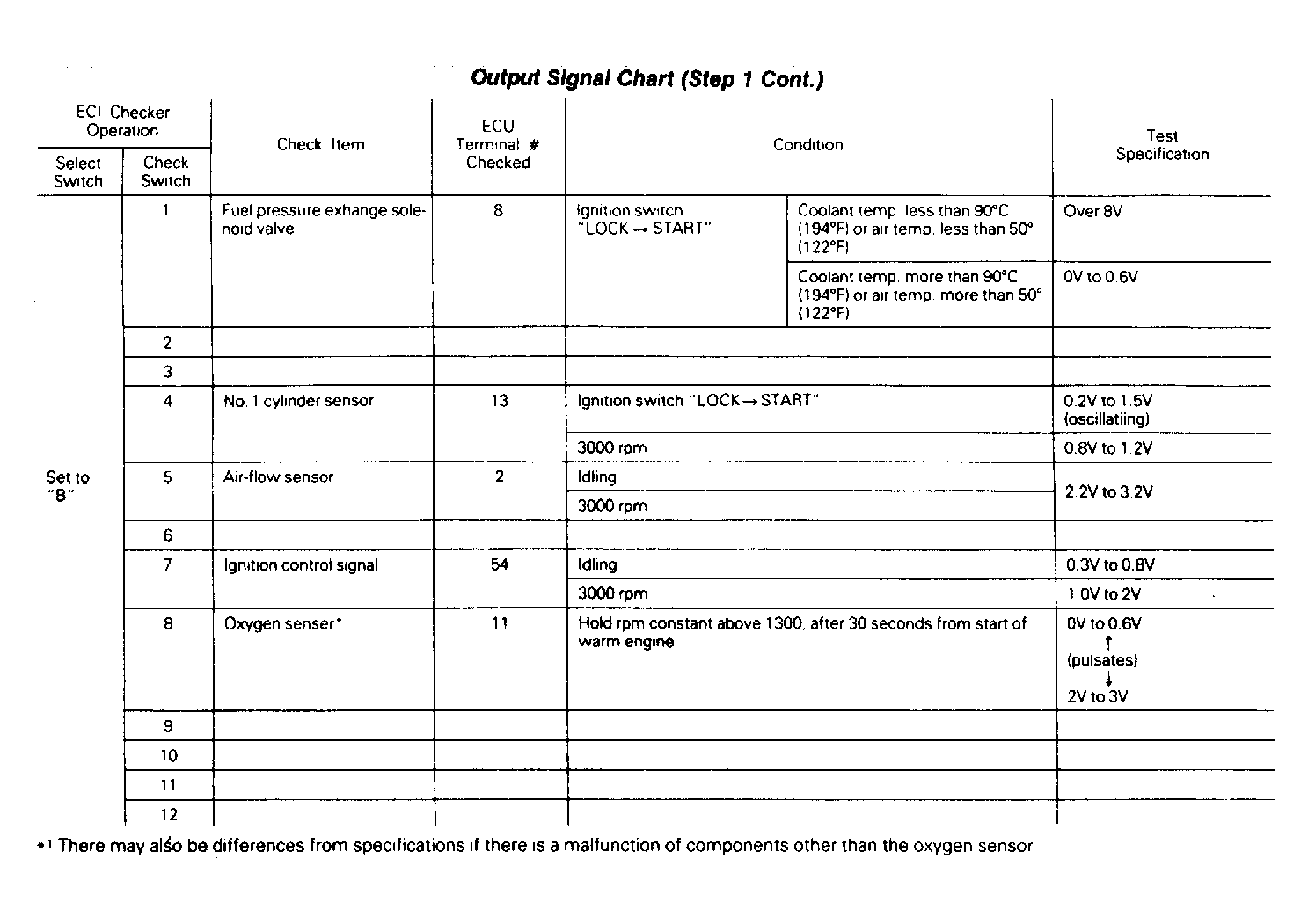

Fig 2: Output Signal Chart (Step 1 Cont.)

G61431

Fig 3: Output Signal Chart (Step 2)

G61434

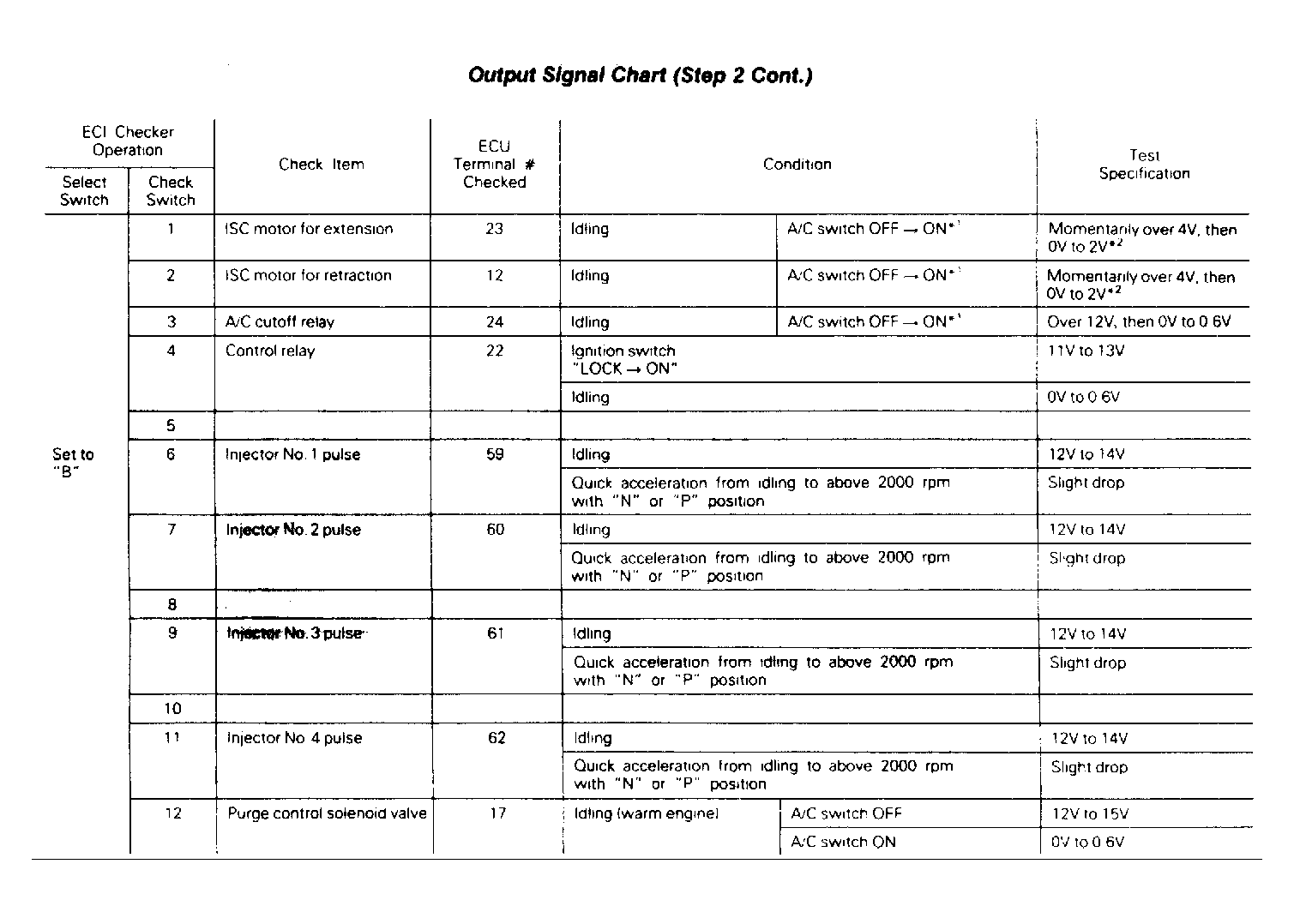

Fig 4: Output Signal Chart (Step 2 Cont.)

G61433
