Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
Diagnostic Connector Under glove box.

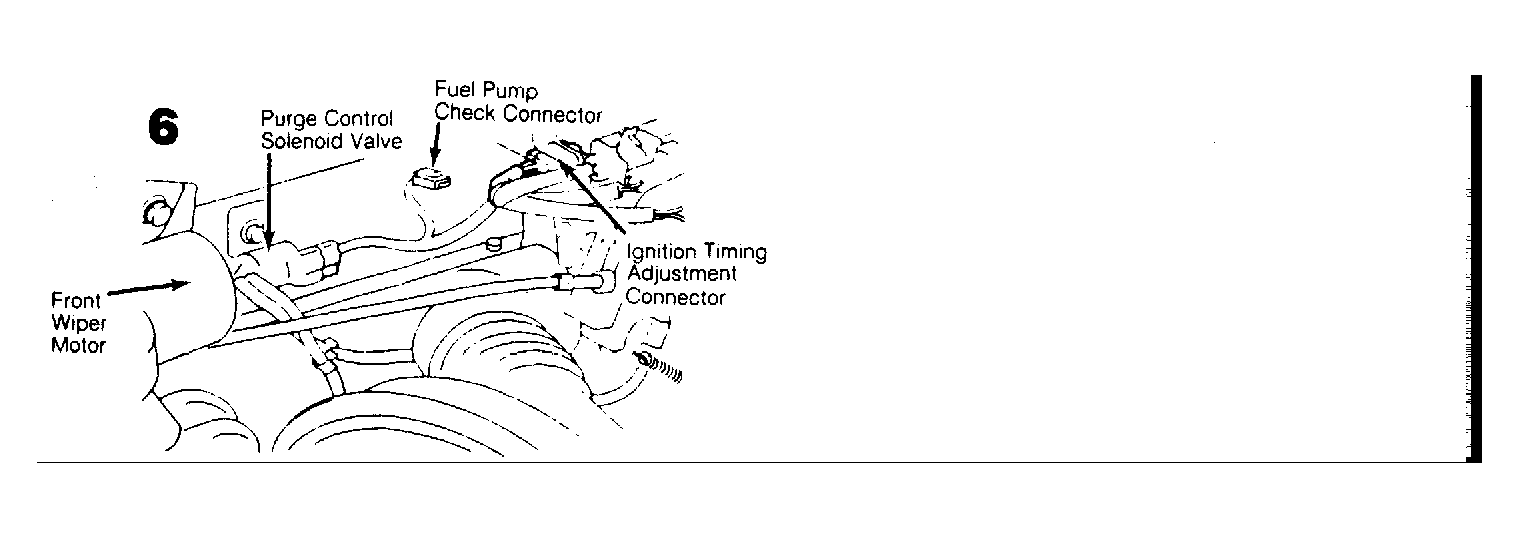

Ignition Timing Adjustment Connector On right side of firewall, near wiper motor. See Figure .
Fuel Pump Check Connector On right side of firewall, near wiper motor. See Figure .
Oxygen Sensor Test Connector On wiring harness, on right side of firewall.
Pulse Generators (2) On top front of transaxle.
Relay Panels At right front of engine bay, and under dash. See Figure & 2.
