Wiring Diagrams

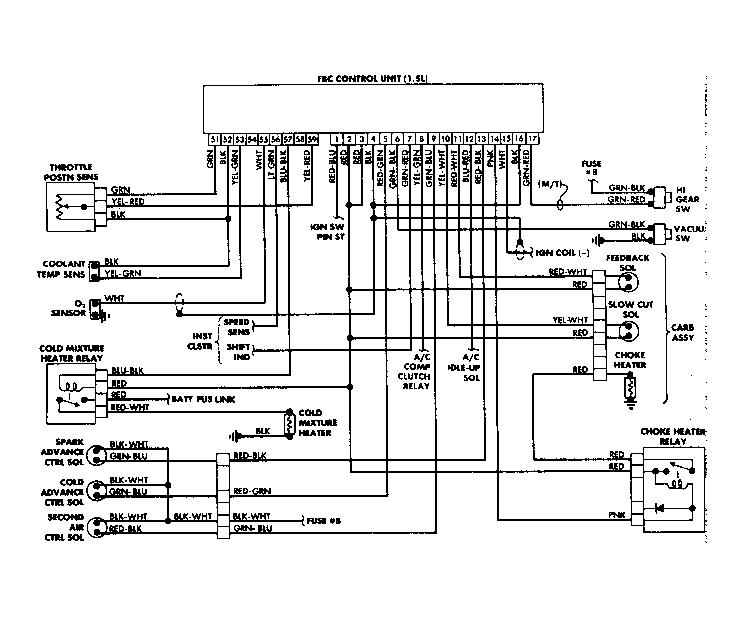

Fig 1: Feedback Carburetor System Wiring Diagram (Colt)

G61374

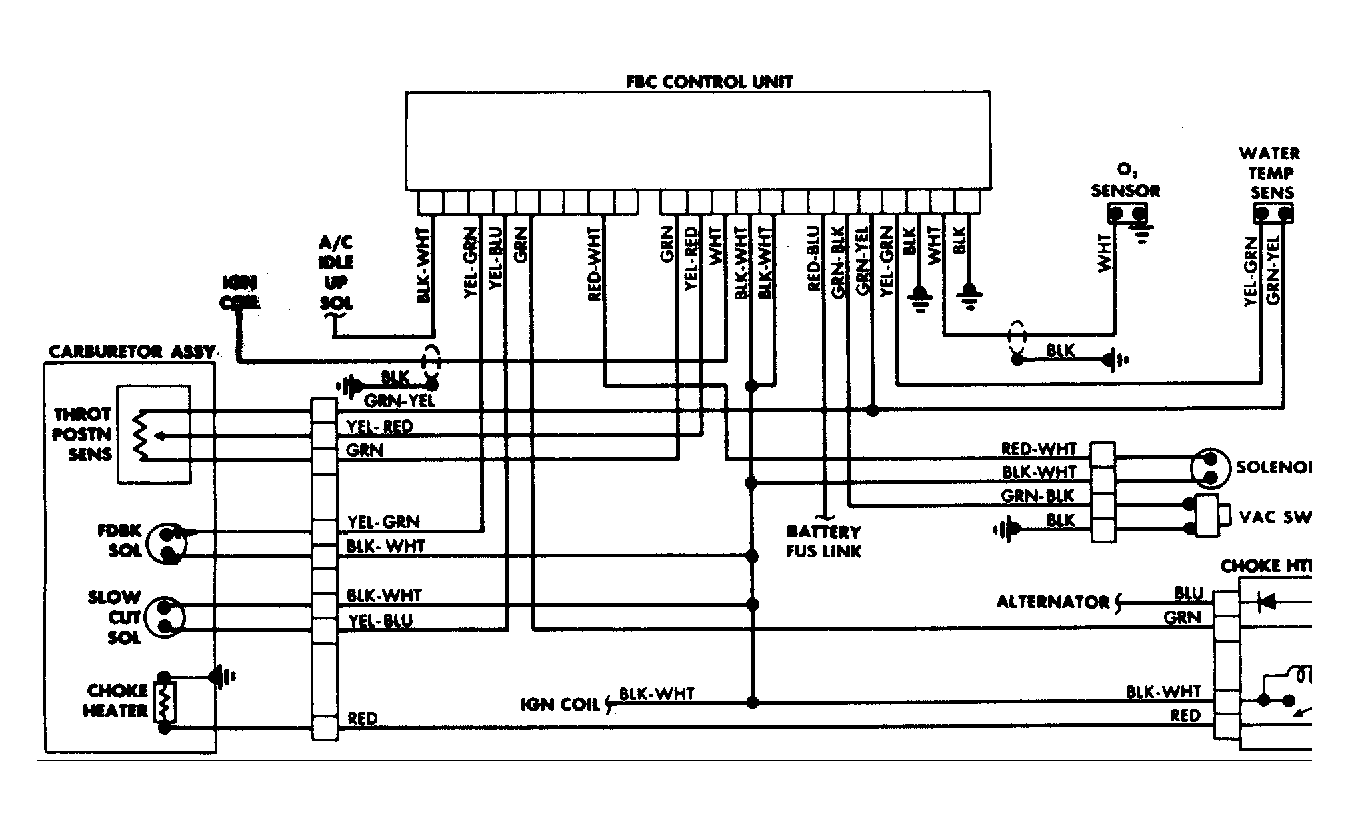

Fig 2: Feedback Carburetor System Wiring Diagram (Ram-50)

G61373

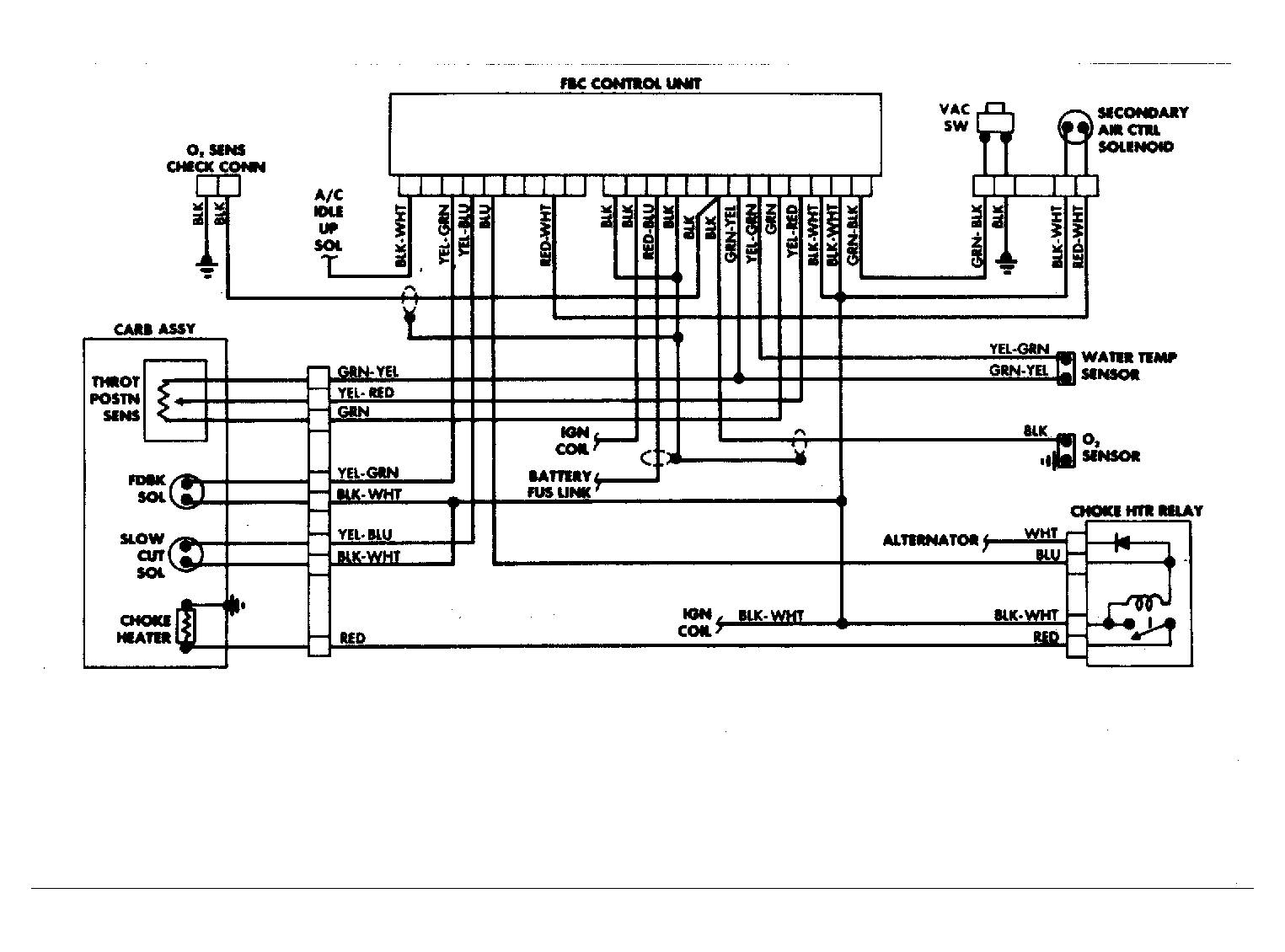

Fig 3: Feedback Carburetor System Wiring Diagram (Raider)

G61376
