Ecu Connector Pin Location & Functions
Ecu Connector Pin Location & Functions

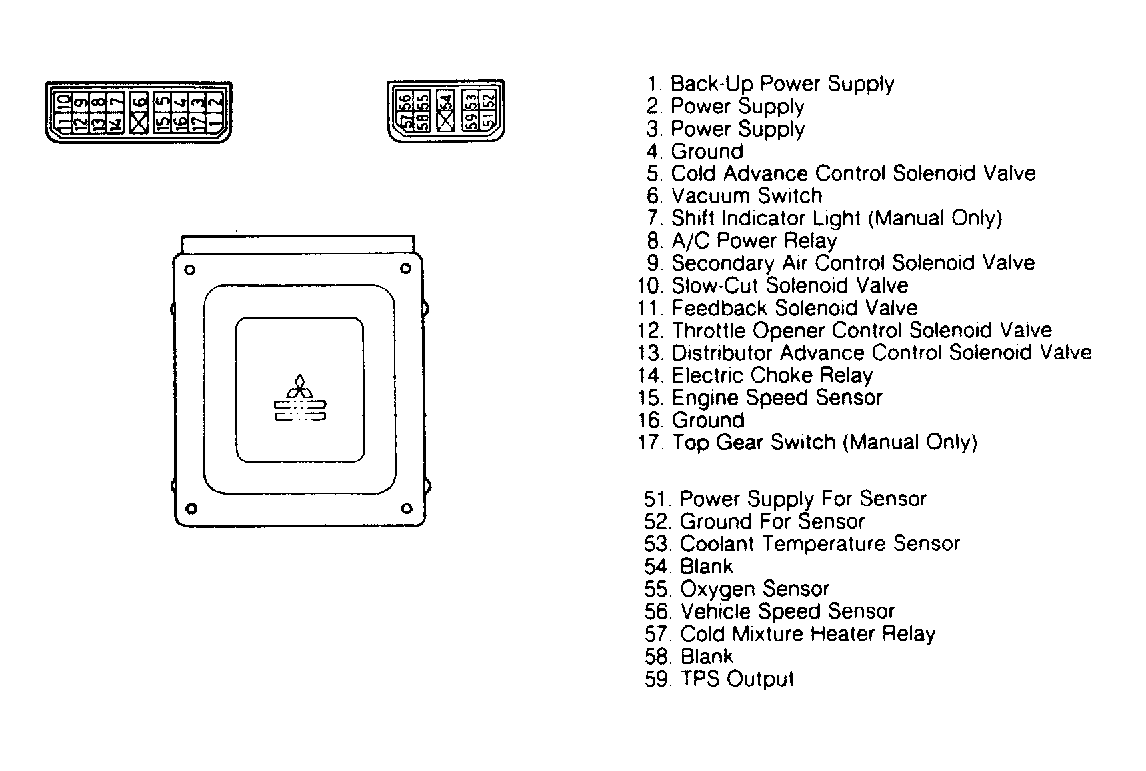

Fig 1: ECU Connector Pin Location & Function (Raider & Ram-50)

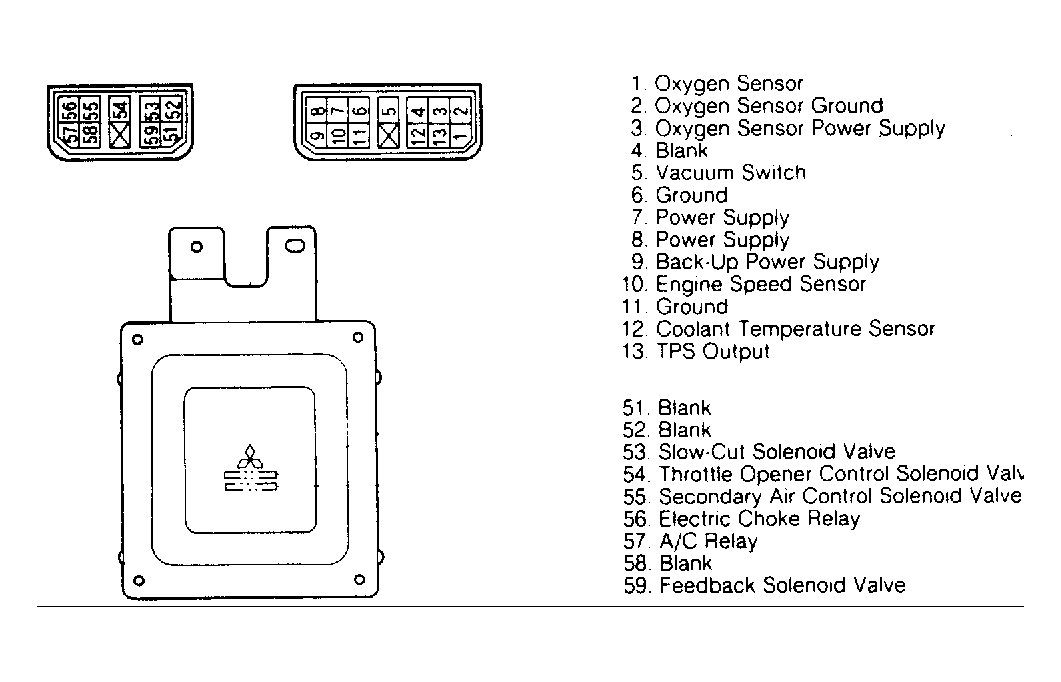

Fig 2: ECU Connector Pin Location & Function (Colt)
