Wiring Diagrams

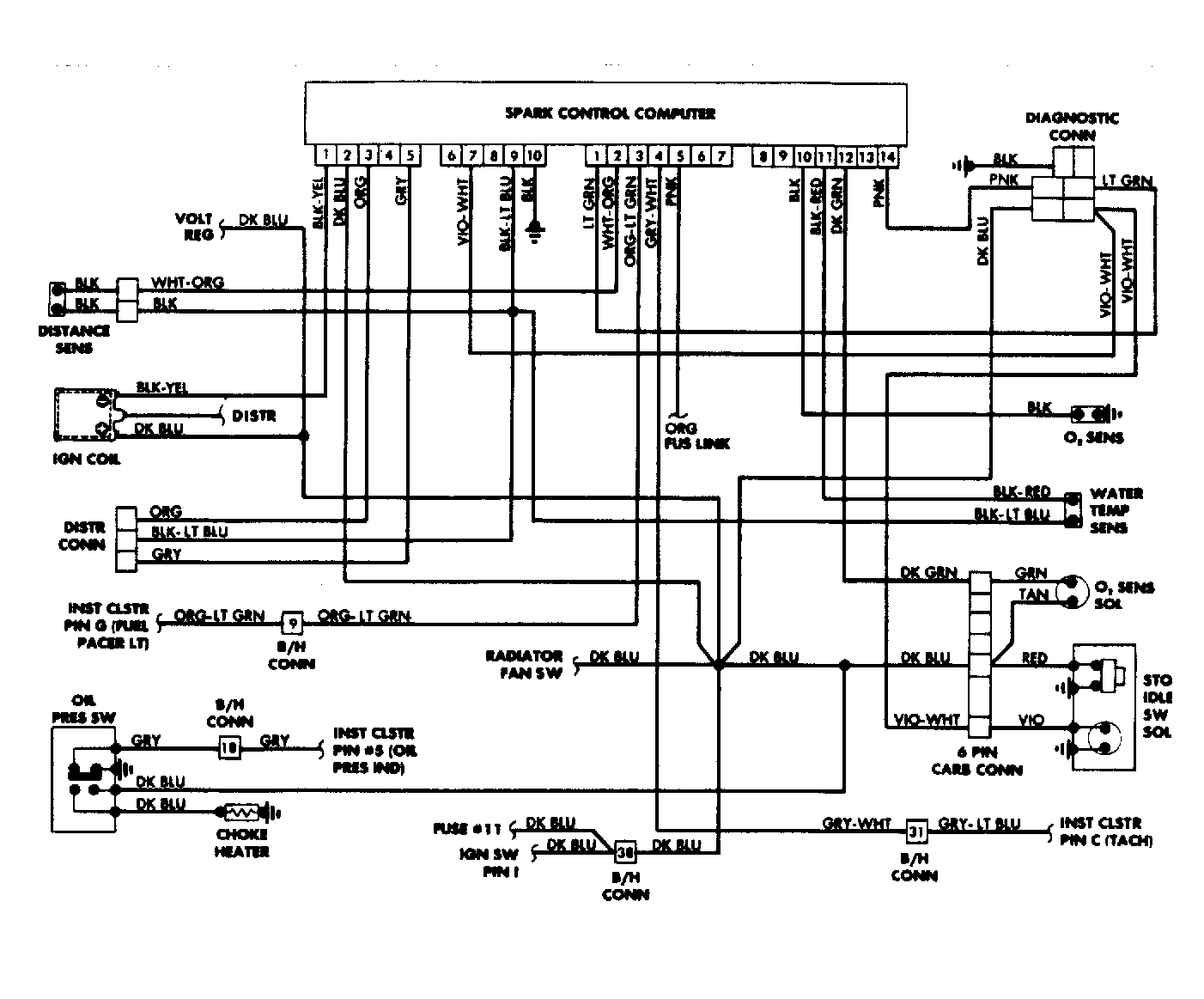

Fig 1: Wiring Diagram For 1.6L Engines

G3972

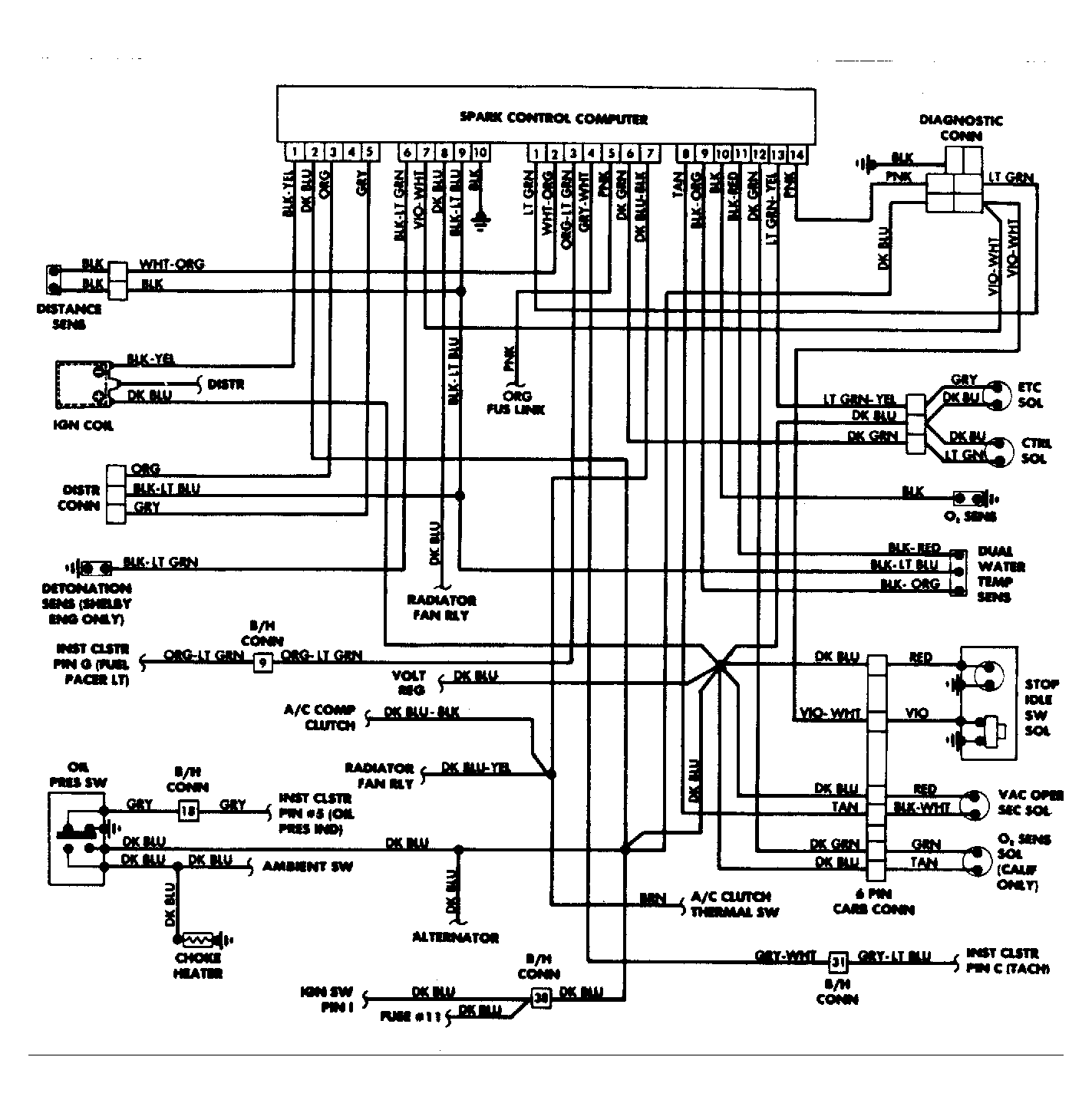

Fig 2: Wiring Diagram For 2.2L Engines

G3973
