Stator Assembly

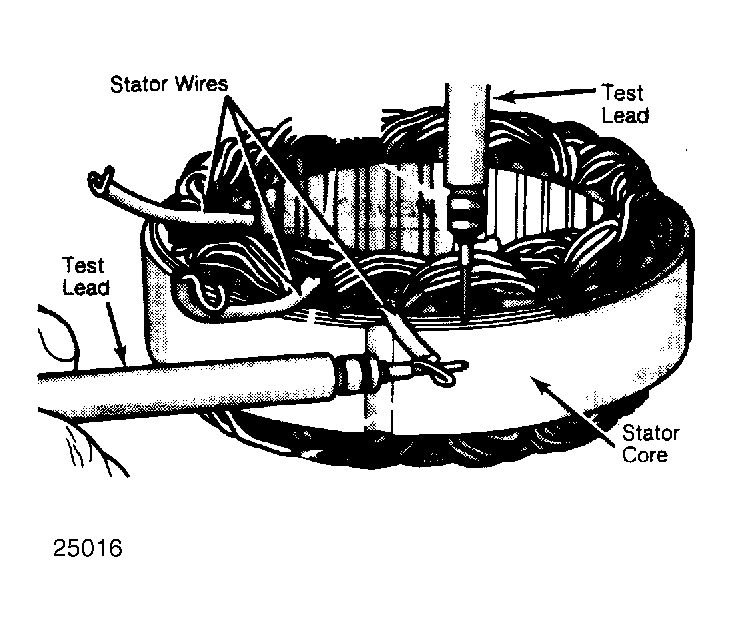

- Connect ohmmeter between each pair of 3 stator leads. If there is no continuity between any 2 leads, stator coil is defective and must be replaced. See Fig 1 .
- Connect ohmmeter leads between stator coil frame and each stator lead wire. If continuity exists, stator is grounded and must be replaced. See Fig 1 .
