Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Blower Motor Resistor | On right side of heater box. | |
| Bulkhead Disconnect | At left rear corner of engine compartment. See Figure & Figure . | |
| Diagnostic Connector | ||
| 2.2L Turbo | On front of right shock tower. | |
| All Others | On left inner fender panel. | |

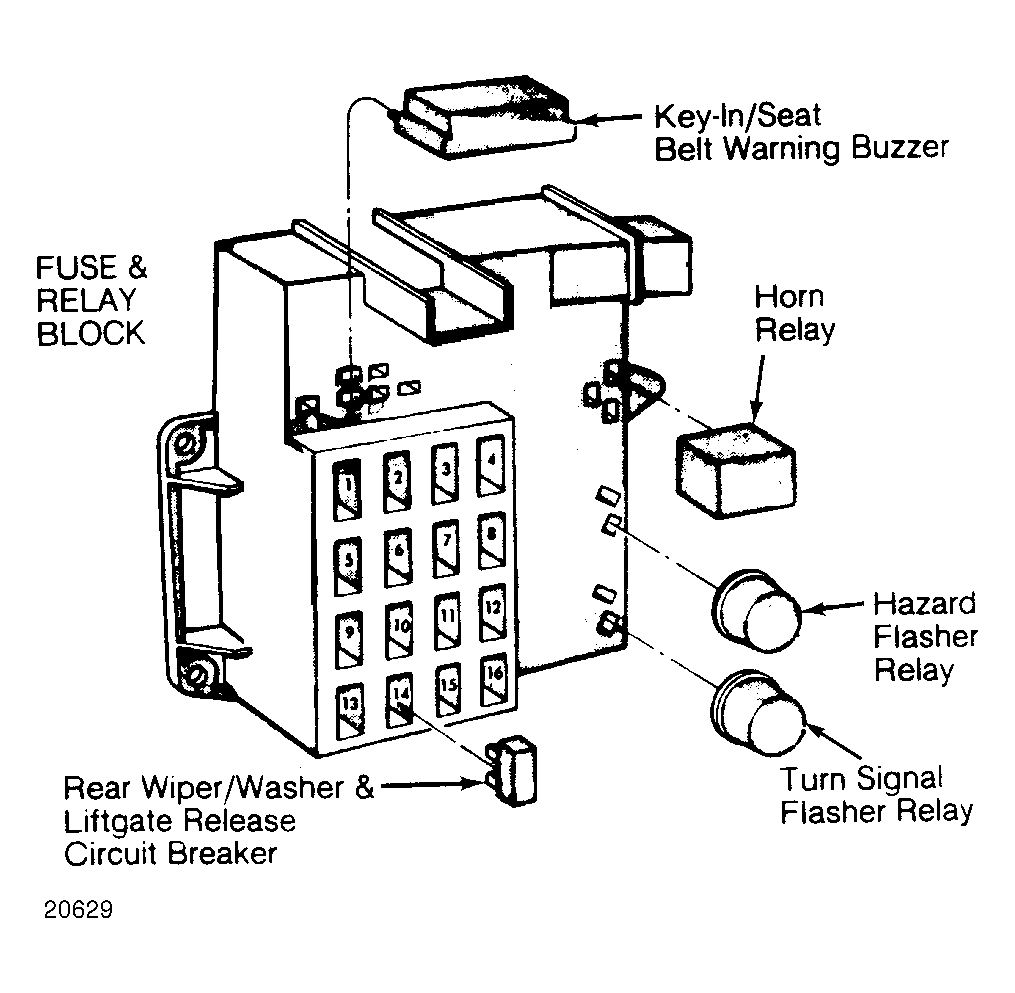

| Fuse & Relay Block | On left kick panel. See Figure. | |
| Fusible Links | ||
| A/C-Heater (Orange/20 ga.) | On left shock tower. See Figure & Figure . | |
| Accessories (Gray/18 ga.) | On left shock tower. See Figure & Figure . | |
| Charging System (Red/14 ga.) | On left shock tower. See Figure & Figure . | |
| Fusible Links Hazard Flasher (Orange/20 ga.) | Behind battery. | |
| Ignition Switch Gray/18 ga. (Orange/20 ga. on 1.6L) & Orange (20 ga.) | On left shock tower. See Figure & Figure . | |
| Rear Window Def. (Orange/20 ga.) | On left shock tower. See Figure & Figure . | |
| Rear Wiper/Washer & Liftgate Release Circuit Breaker | In fuse block cavity No. 14. See Figure. | |
| Speed Control Servo | Mounted below battery tray. | |
| Vacuum Transducer (Carb.) | On spark control computer. See Figure. | |
