Fuel Injected Models

Disconnect hoses from purge control valve and remove valve. Apply 7.8 in. Hg to top vertical nipple of purge control valve. See Figure . Blow into purge control valve's port-to-canister and check that air flows through valve. Replace valve if it does not operate as outlined.

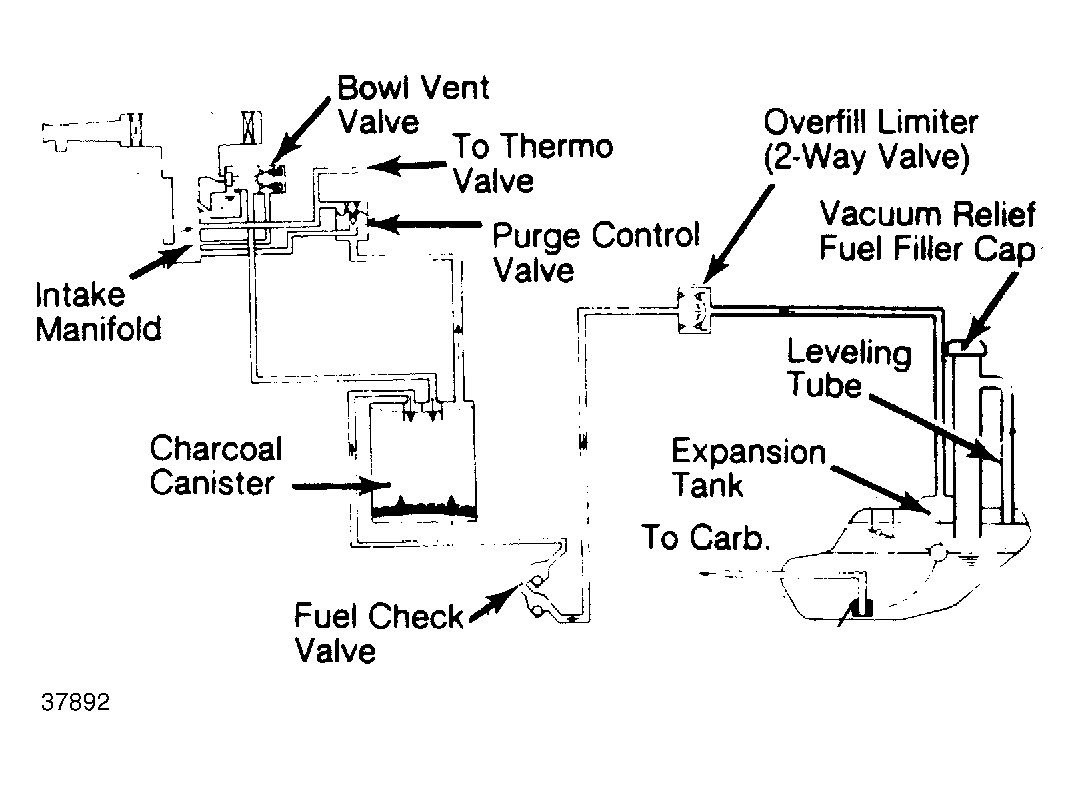

Fig 1: Fuel Evaporation System (Colt Vista)
G37892
