Component Tests: Switch

Remove mirror switch from console. See MIRROR SWITCH  under REMOVAL & INSTALLATION. Using an ohmmeter, test for continuity between terminals as shown. See Fig 1 and Fig 2 .

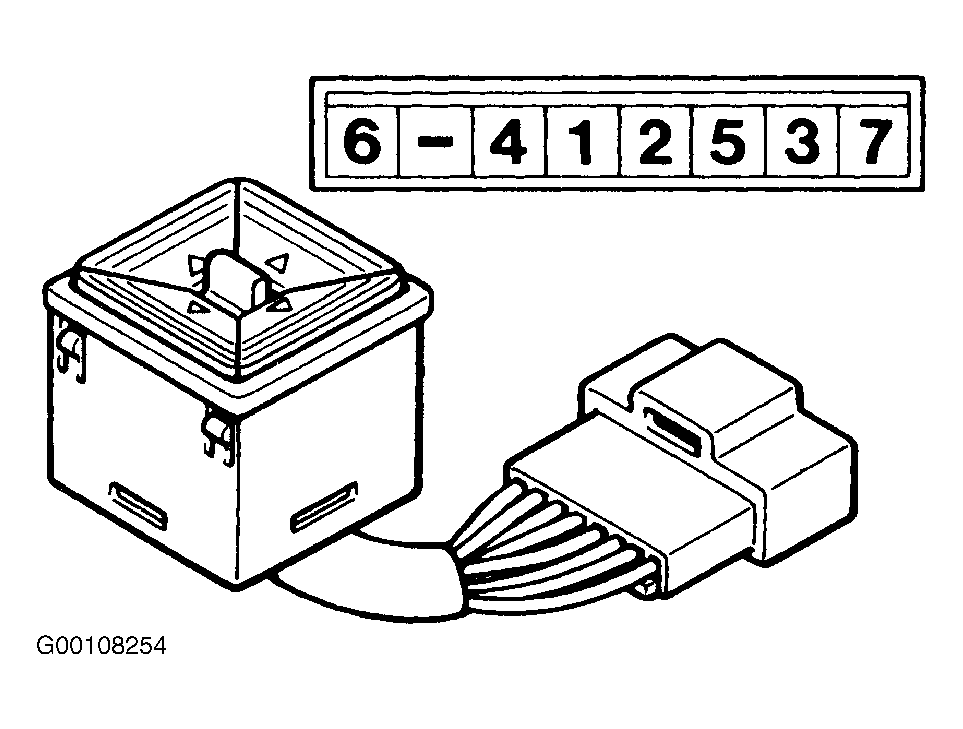

Fig 1: Identifying Motor Switch Connector Terminals

Courtesy of CHRYSLER CORP.

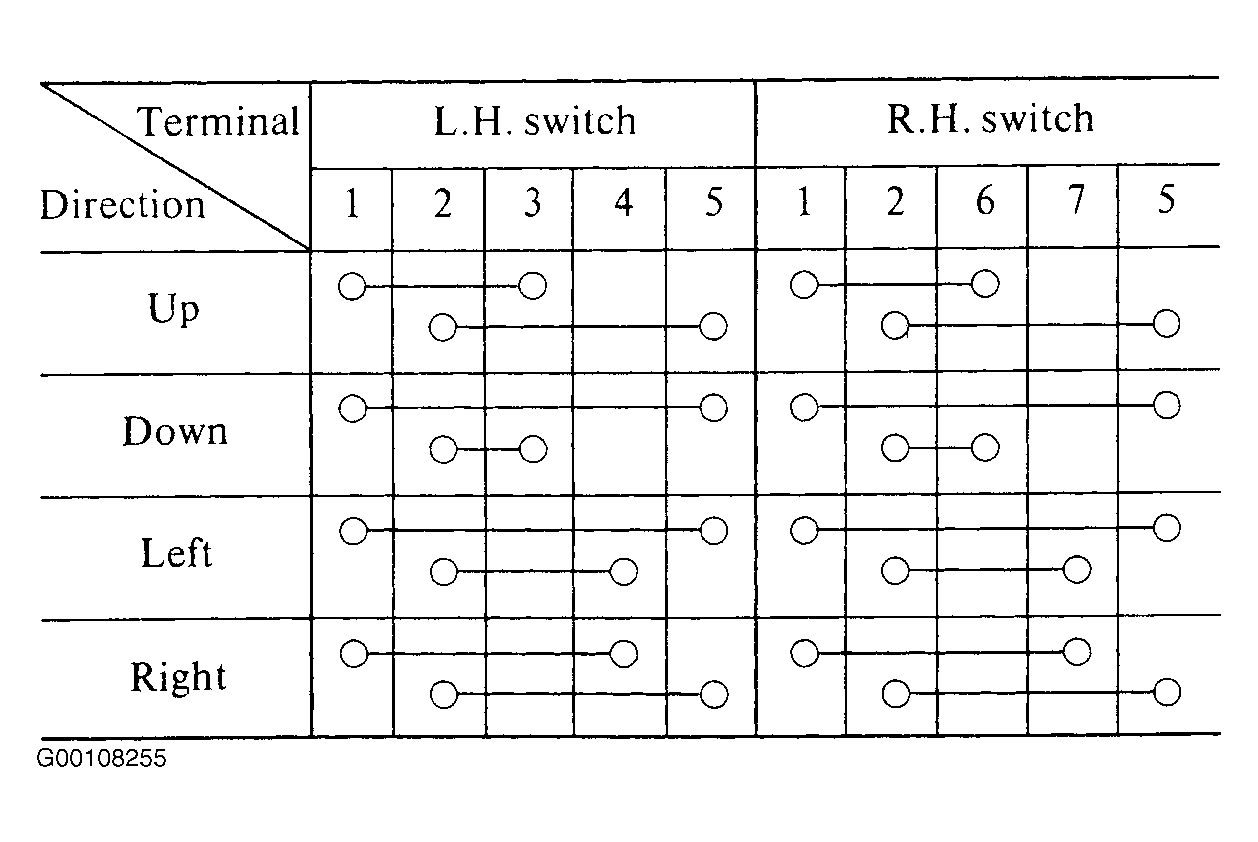

Fig 2: Power Mirror Switch Continuity Test

Courtesy of CHRYSLER CORP.
