Mirror Assembly

Access mirror motor connector. Apply voltage to each terminal as shown. See Fig 1 and Fig 2 . Verify mirror moves as specified.

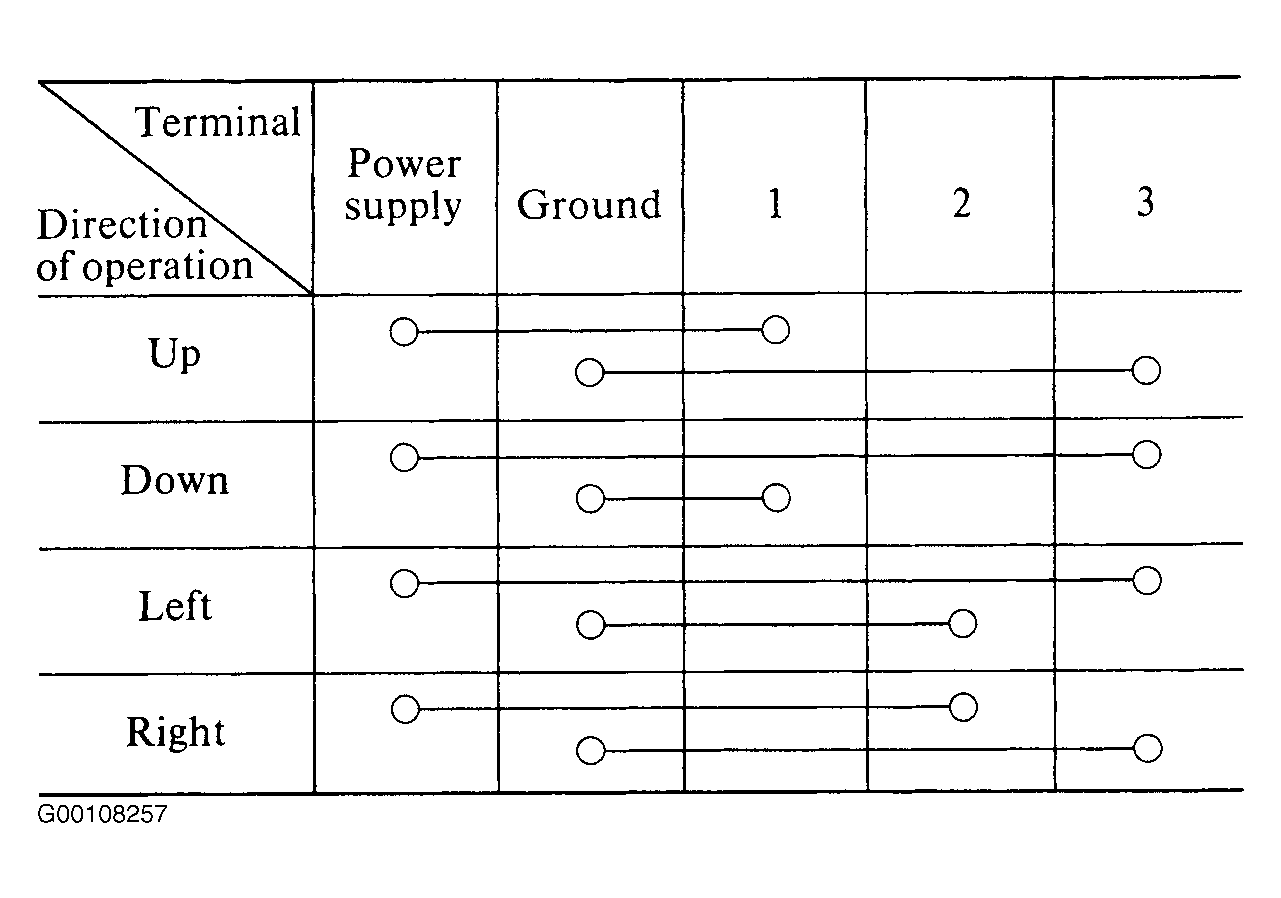

Fig 1: Identifying Power Mirror Motor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Power Mirror Motor Test

Courtesy of CHRYSLER CORP.
