Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

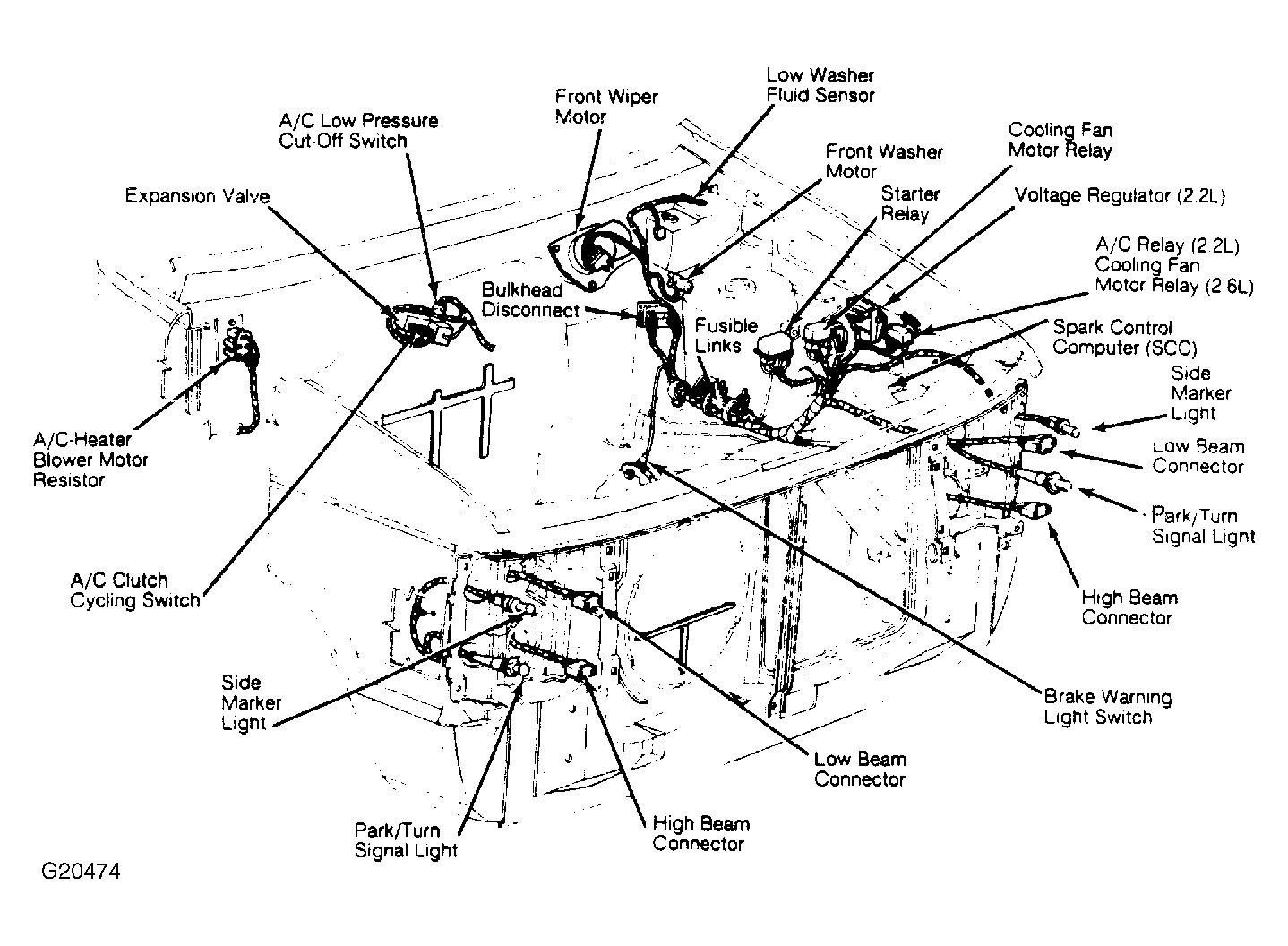

| A/C-Heater Blower Motor Resistor | On right side of firewall. See Figure. |
| Audible Tone Generator (Chimes) | Under instrument panel, between radio and steering column. |
| Bulkhead Disconnect | In left rear corner of engine bay. See Figure. |

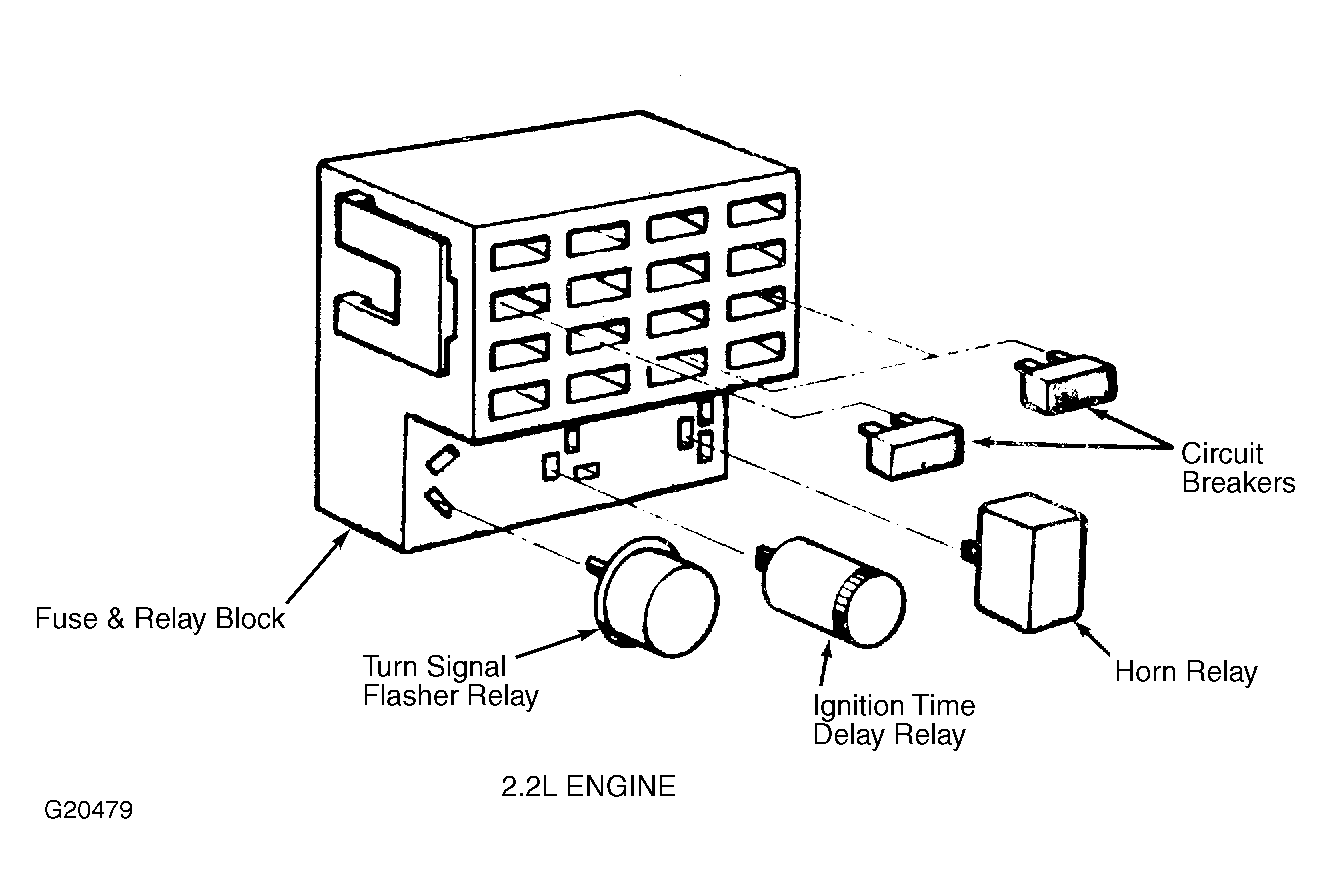

| Fuse & Relay Block | Behind access panel, left of steering column. See Figure. |
| Fusible Links | On left inner fender panel, below starter relay. See Figure. |
| Liftgate Release Sol. Circuit Breaker | On fuse and relay block. |
| Power Seat Circuit Breaker | On fuse and relay block. |
| Power Window Circuit Breaker | On fuse and relay block. |
| Vacuum Transducer (2.2L) | On spark control computer. See Figure. |
| Voltage Regulator (2.2L) | On left inner fender panel. See Figure. |
