Wiring Diagrams

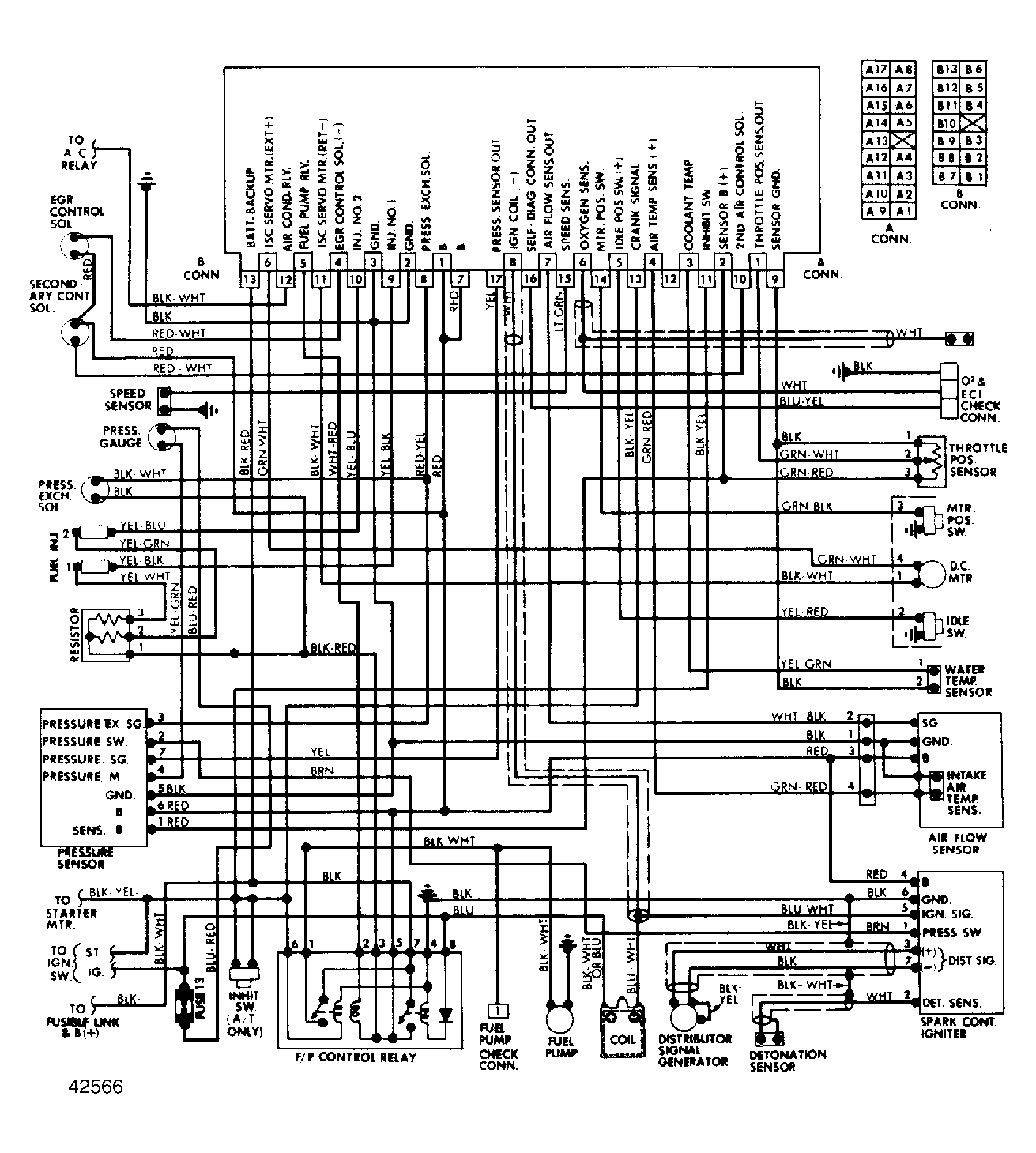

Fig 1: ECI System Wiring Diagram (Except Intercooled Models)

G42566

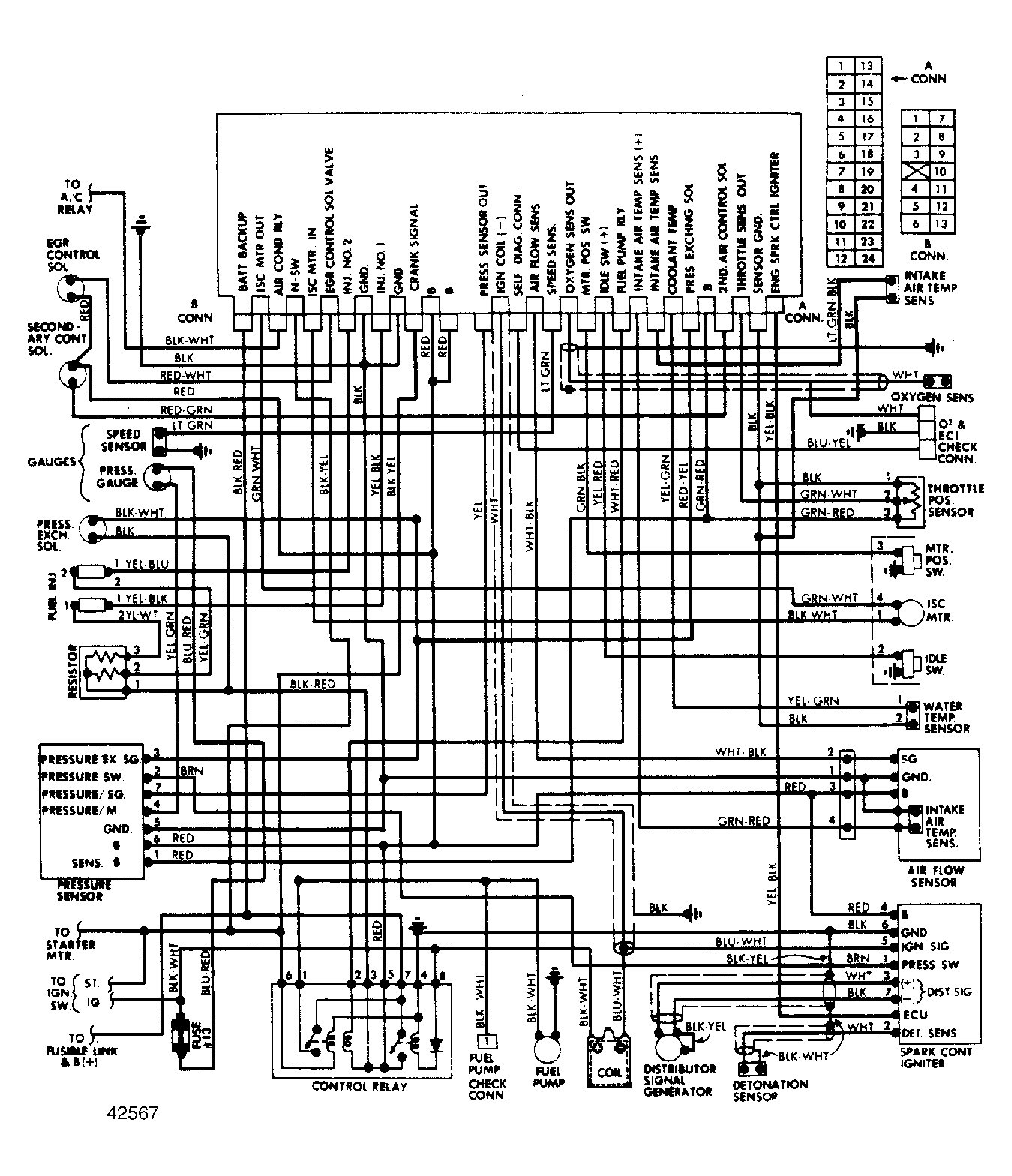

Fig 2: ECI System Wiring Diagram (Intercooled Models)

G42567
