Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On heater box. |

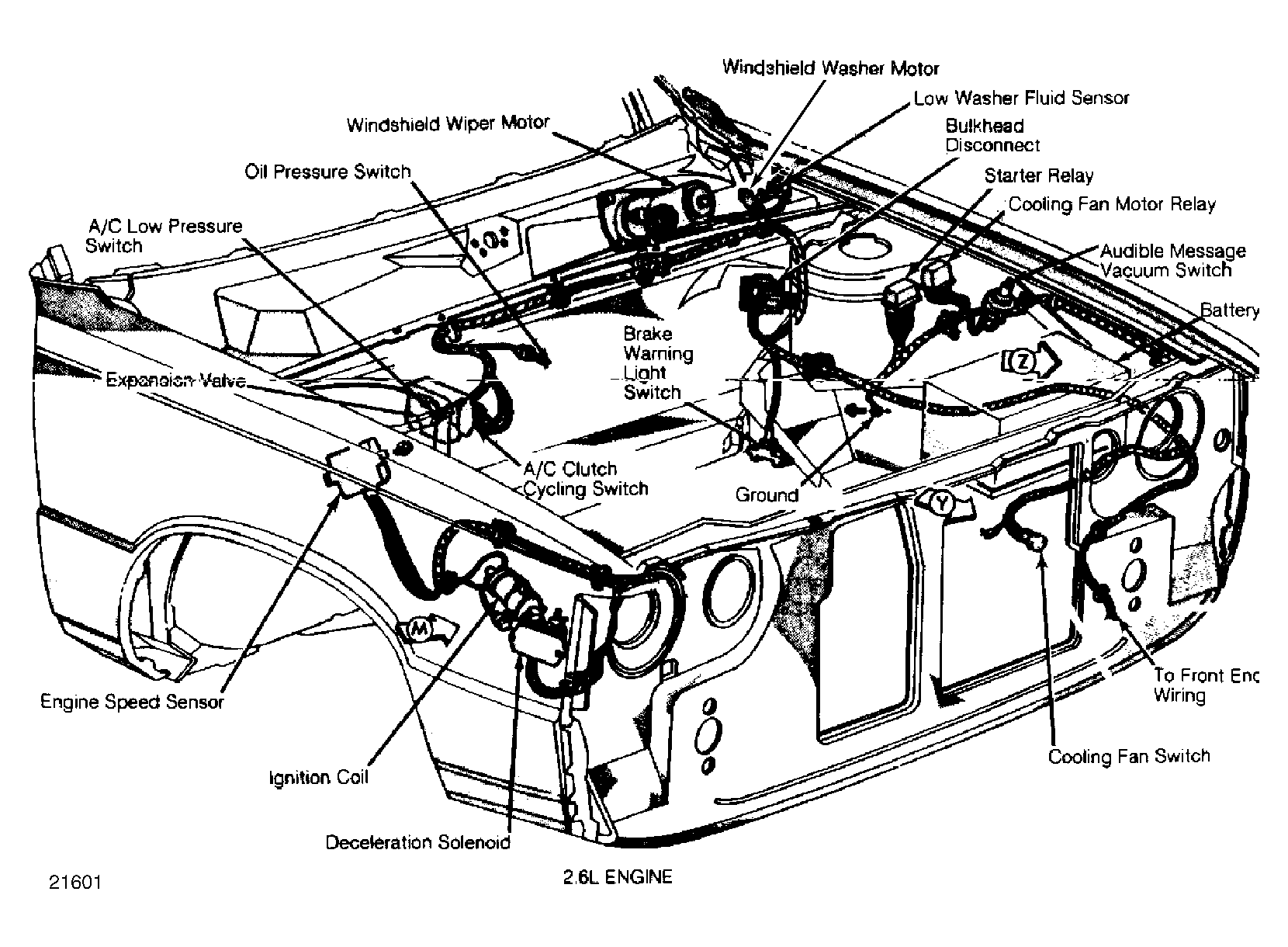

| Bulkhead Disconnect | At left rear of engine bay. See Figure & Figure . |
| Fuse and Relay Block | On left side of dash. See Figure. |
| Fusible Links | At left inner fender panel. |
| Power Seat/Power Door Lock Circuit Breaker | In fuse block cavity No. 8. |
| Power Window Circuit Breaker | In fuse block cavity No. 3. |
| Trunk Release/Rear Washer/Lift Gate Release & Speed Control Circuit Breaker | In fuse block cavity No. 14. |
| Vacuum Transducer | On spark control computer. See Figure. |
