Control Units

CONTROL UNITS LOCATION

Component Location
Intermittent Wiper Control Unit On bracket on left lower reinforcement.

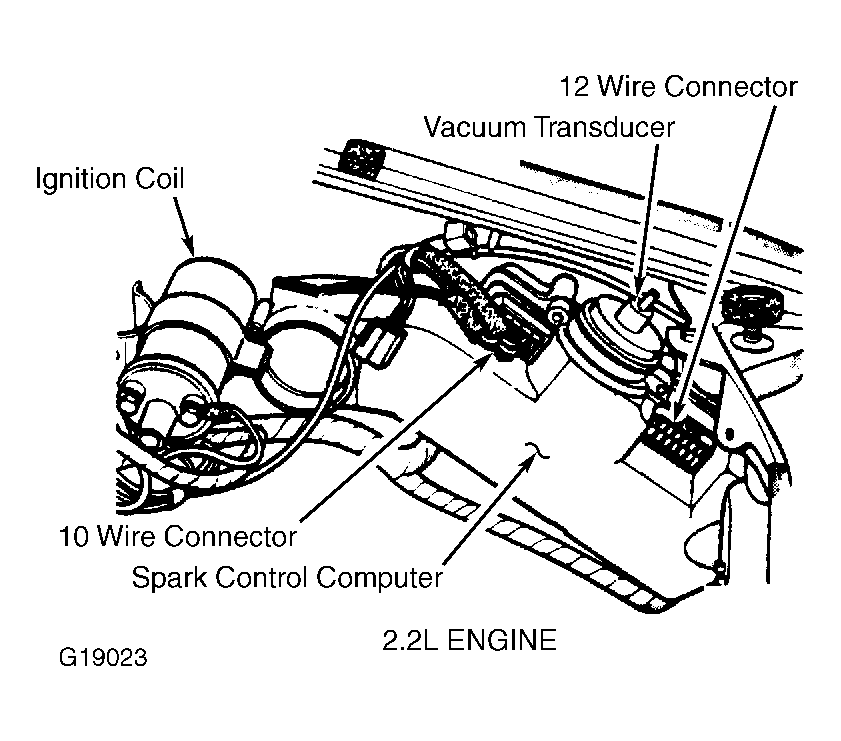

Spark Control Computer (SCC) In left front corner of engine bay. See Figure.

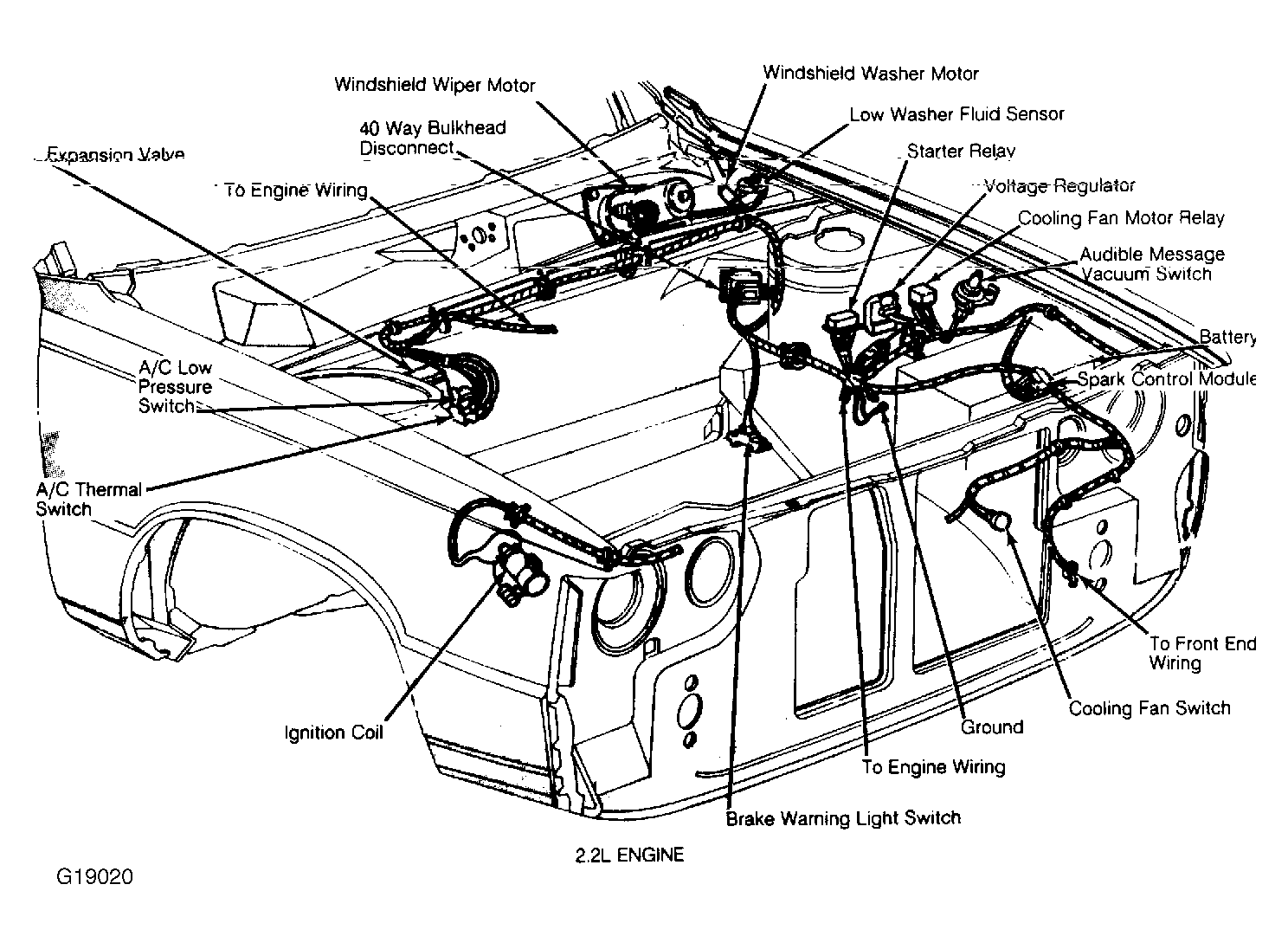

Spark Control Module In front of battery. See Figure.

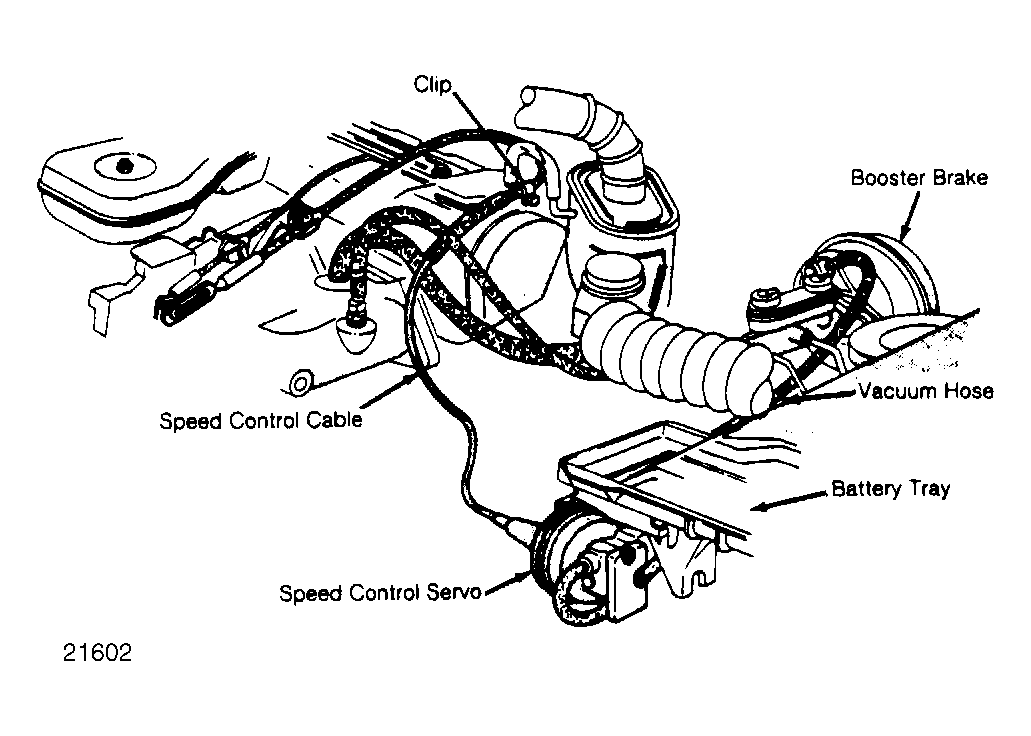

Speed Control Servo On bottom of battery tray. See Figure.
