Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

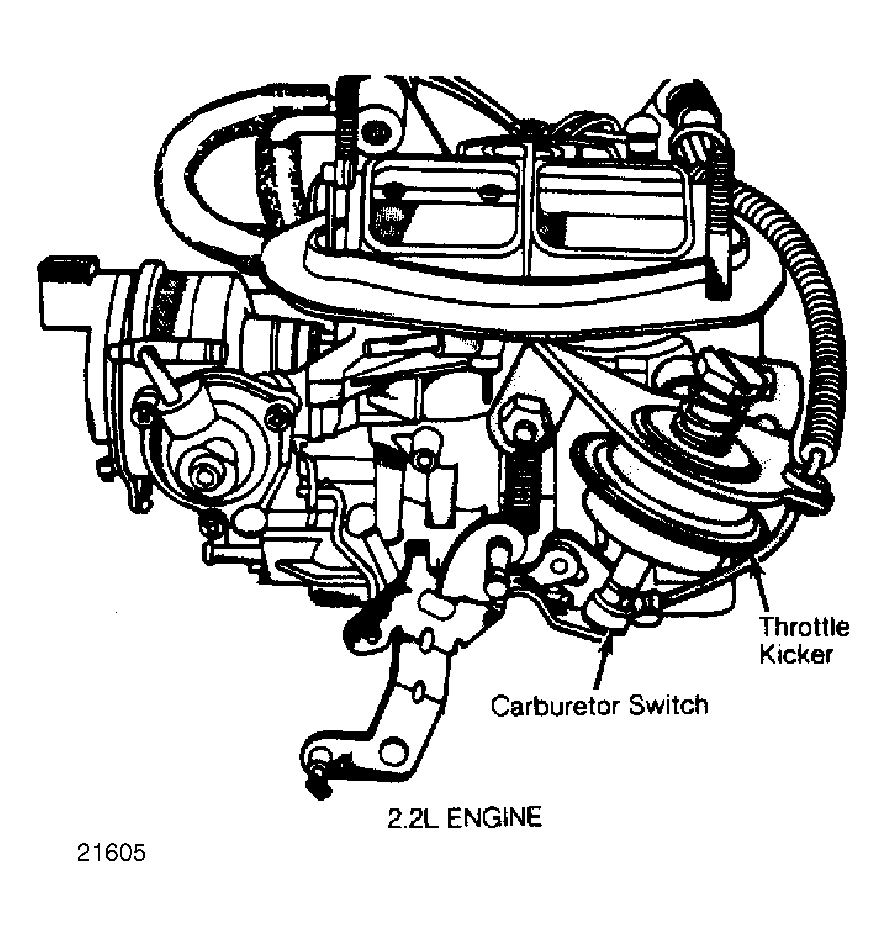

Fig 1: Component Locations (1 Of 11)

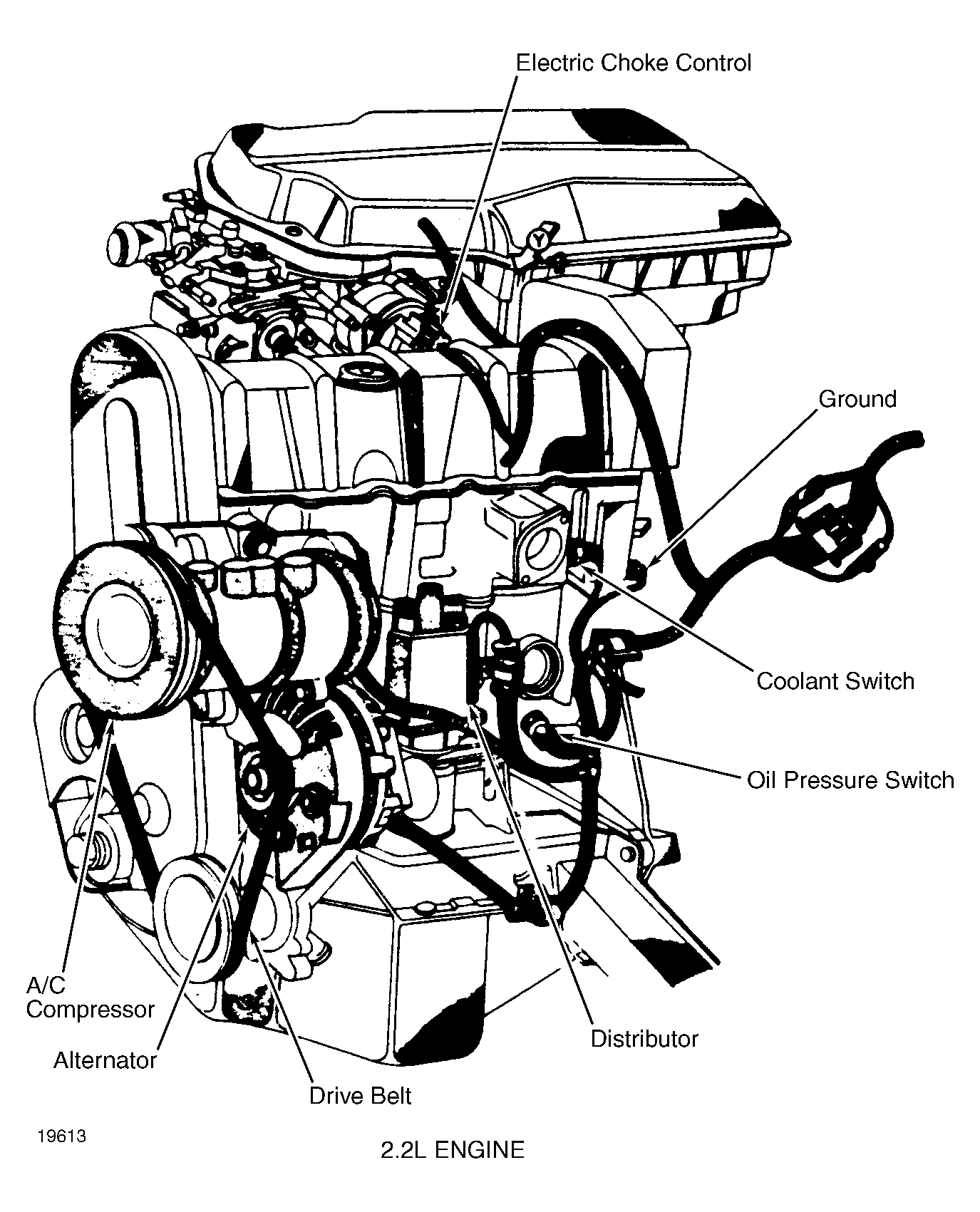

Fig 2: Component Locations (2 Of 11)

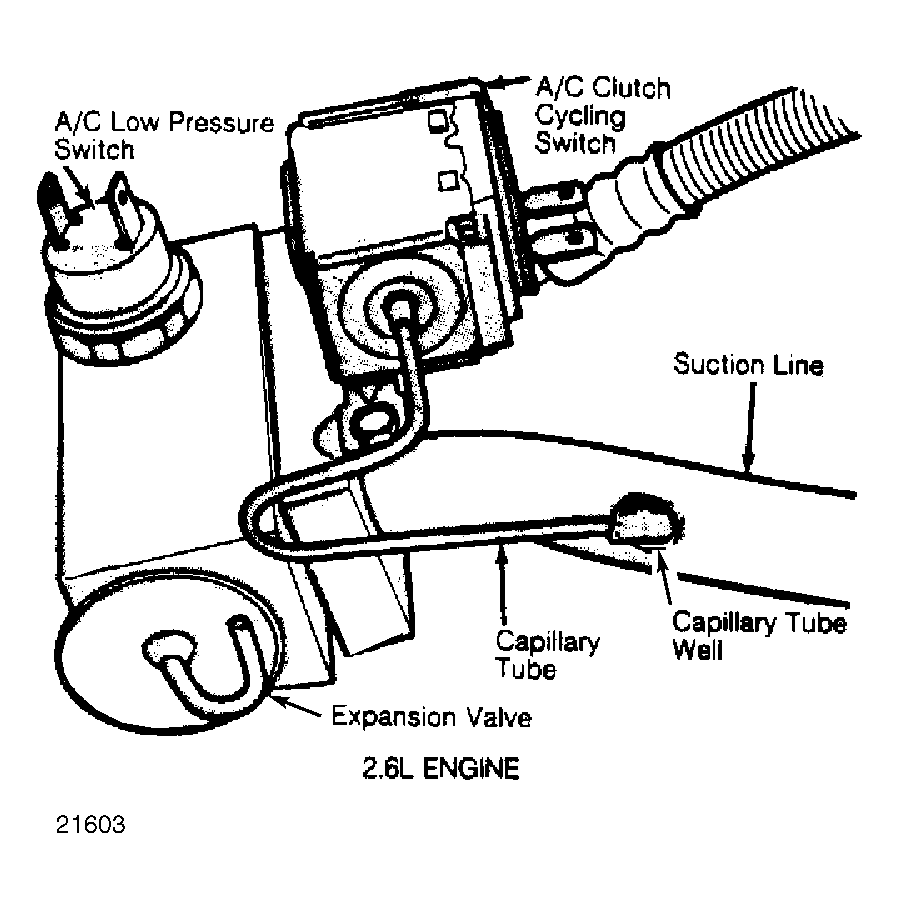

Fig 3: Component Locations (3 Of 11)

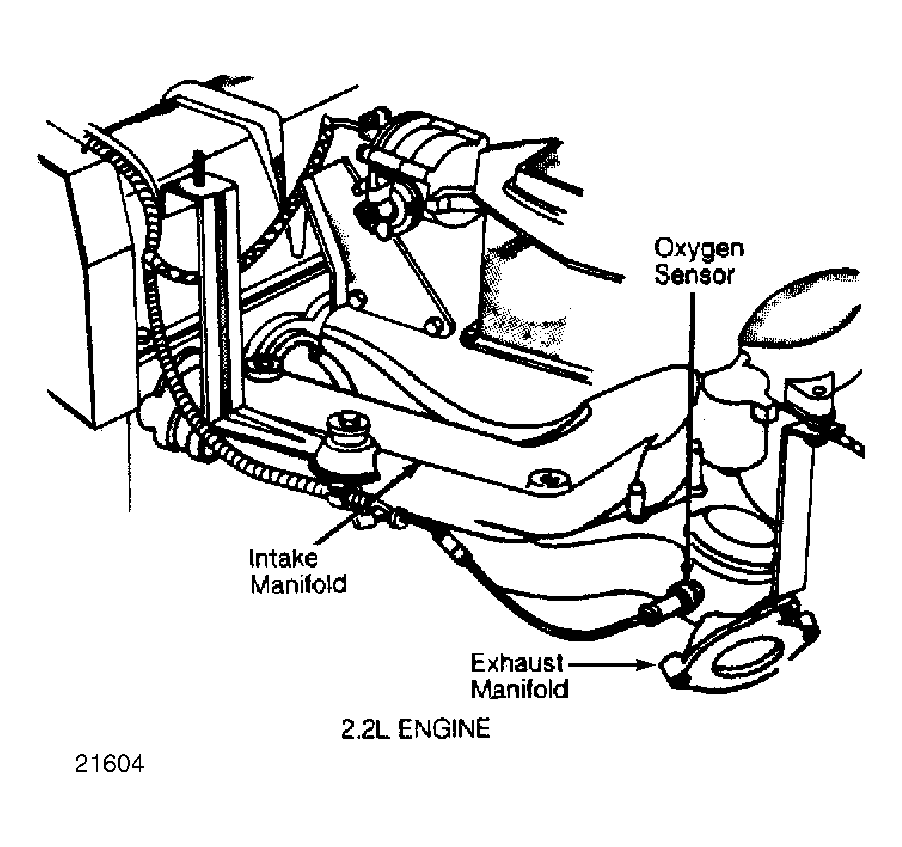

Fig 4: Component Locations (4 Of 11)

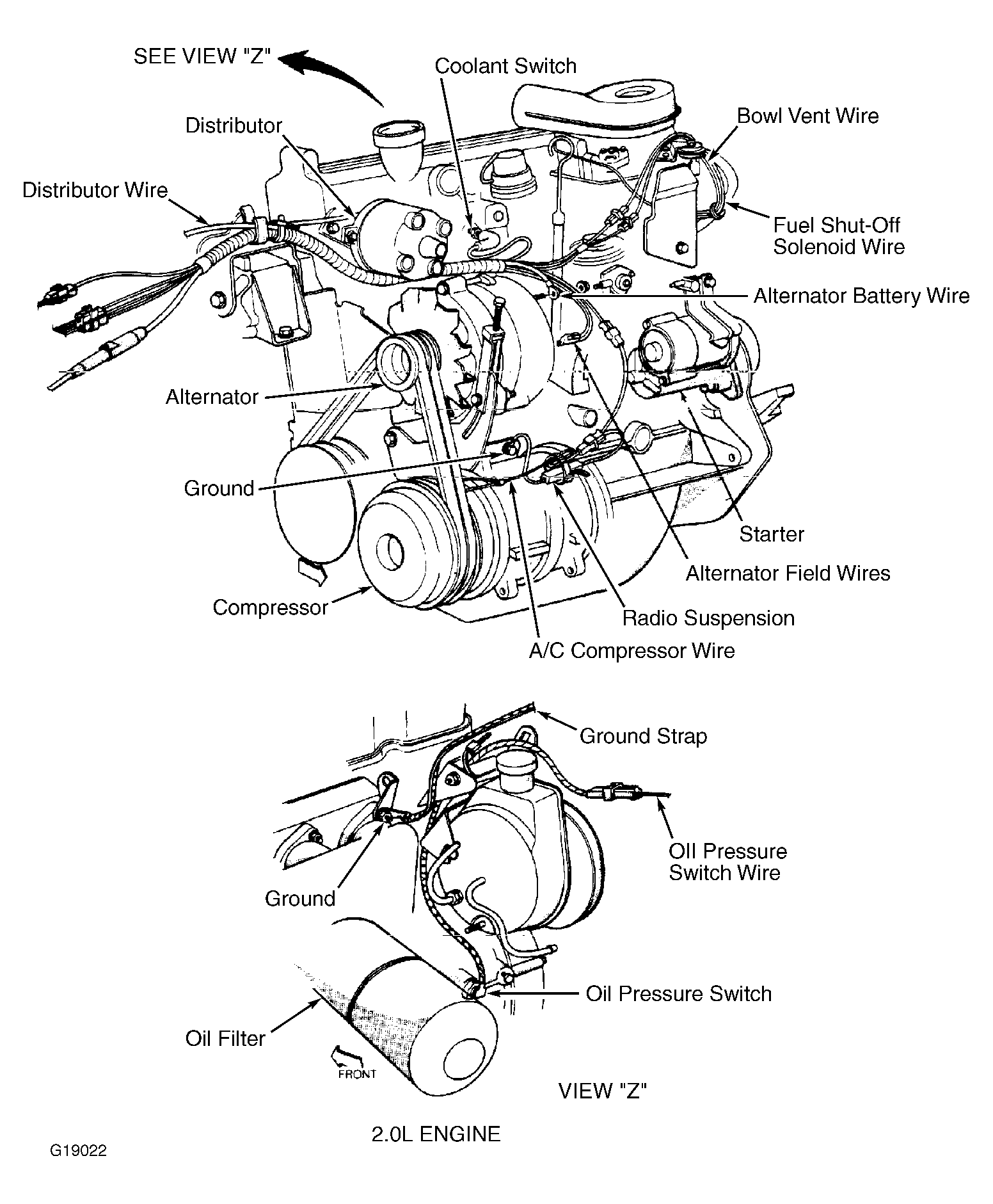

Fig 5: Component Locations (5 Of 11)

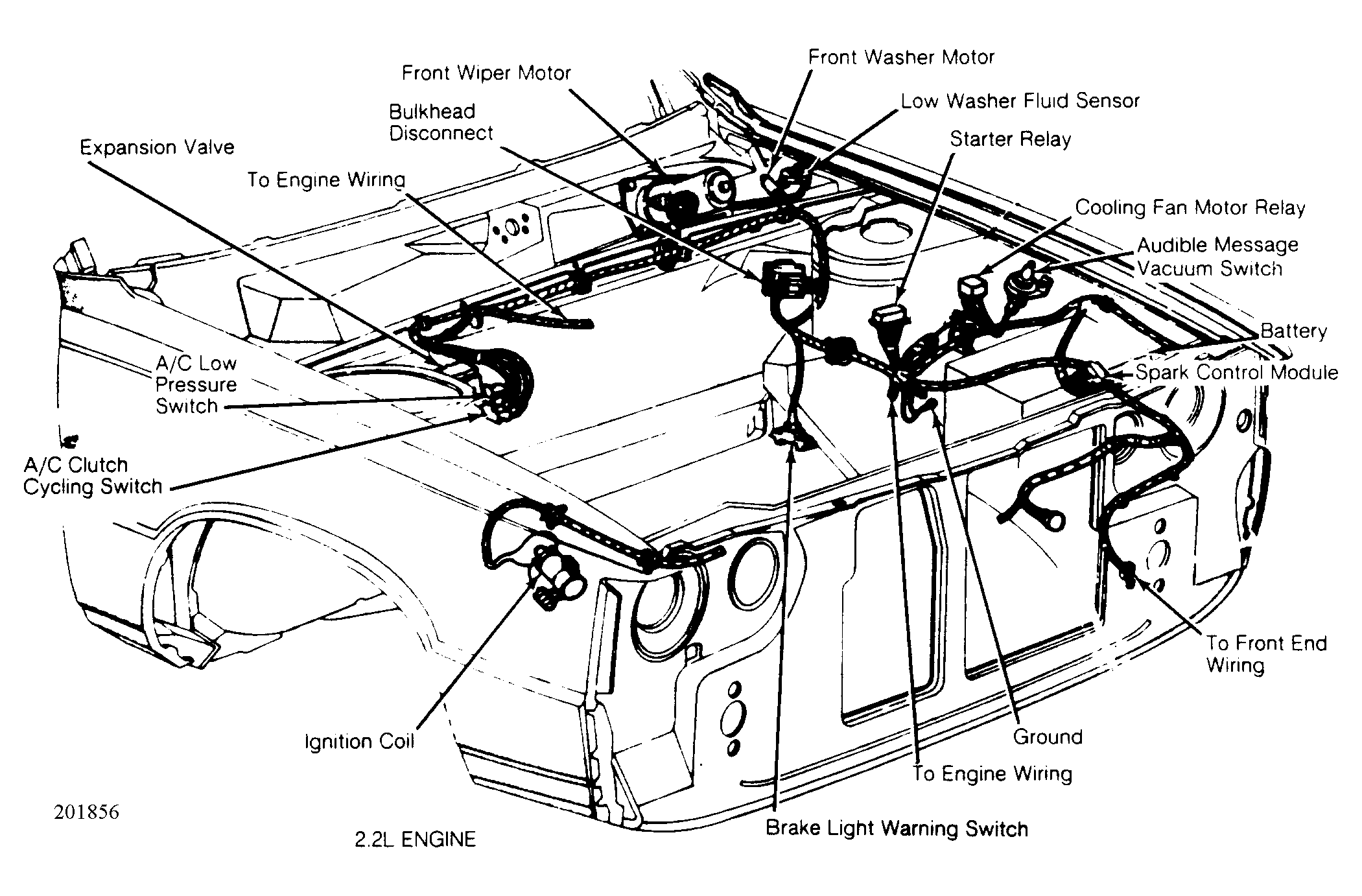

Fig 6: Component Locations (6 Of 11)

Fig 7: Component Locations (7 Of 11)

Fig 8: Component Locations (8 Of 11)

Fig 9: Component Locations (9 Of 11)

Fig 10: Component Locations (10 Of 11)

Fig 11: Component Locations (11 Of 11)
