Description & Operation
WARNING:
Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.
CAUTION:
When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES
article in GENERAL INFORMATION before disconnecting battery.

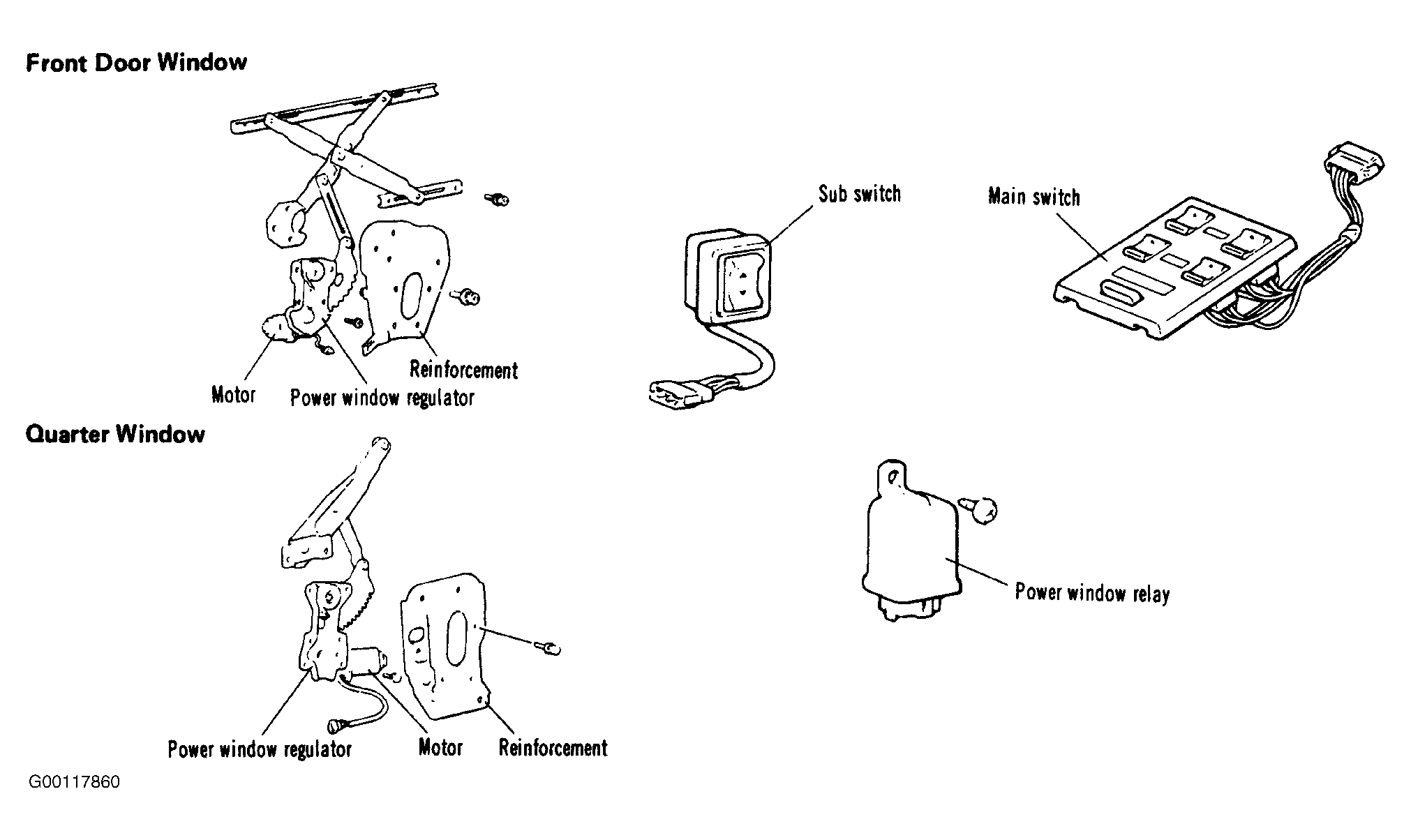

The power windows system consists of a main switch, sub switch, power window relay, power window regulator and electric motors. See Fig 1 . Electric window motors for windows are permanent magnet type. Motors are grounded through the master switch by a Black lead attached to the left cowl panel.
