Mirror Switch
Mirror Switch
Using an ohmmeter, test for continuity between terminals as shown, while operating the switch. See
Fig 1
.

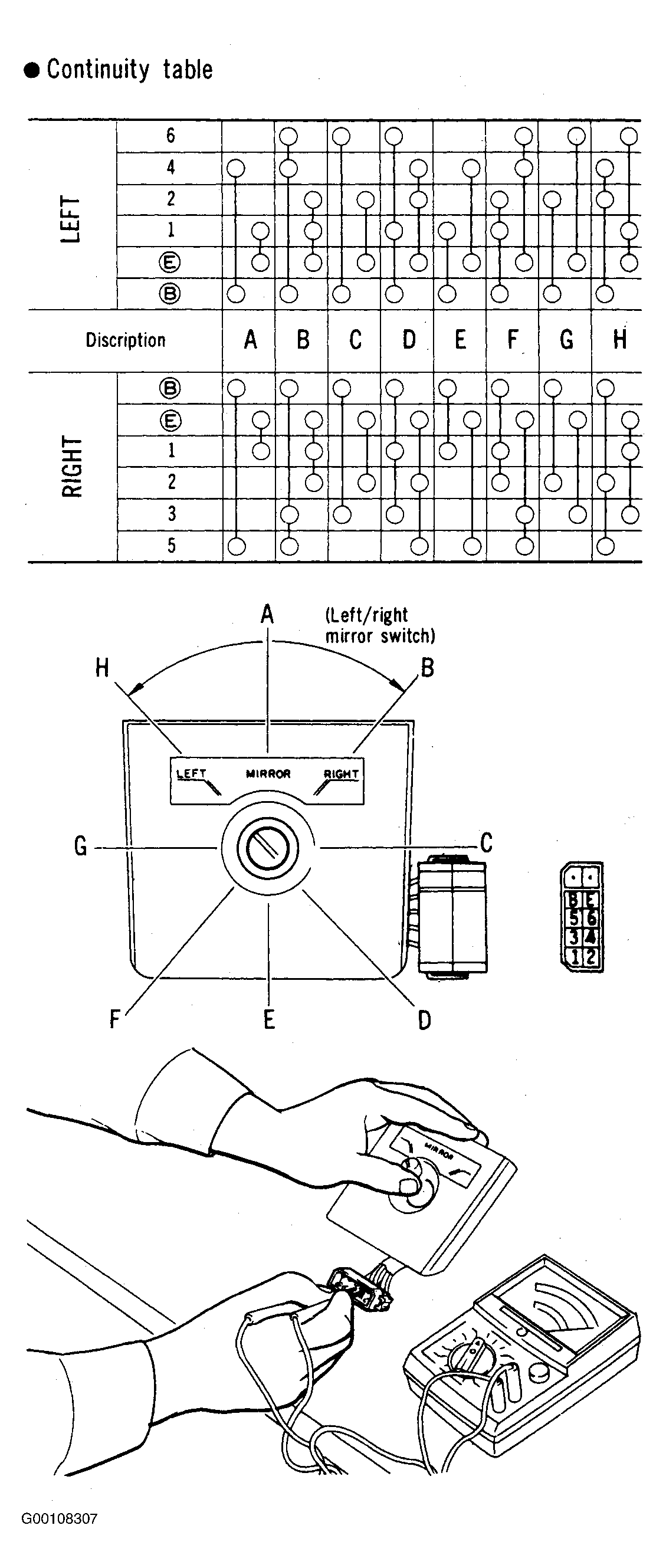

Fig 1: Mirror Switch Continuity Test
Courtesy of CHRYSLER CORP.
