Torque Specifications

NOTE: For TORQUE SPECIFICATIONS, see Fig 1 .

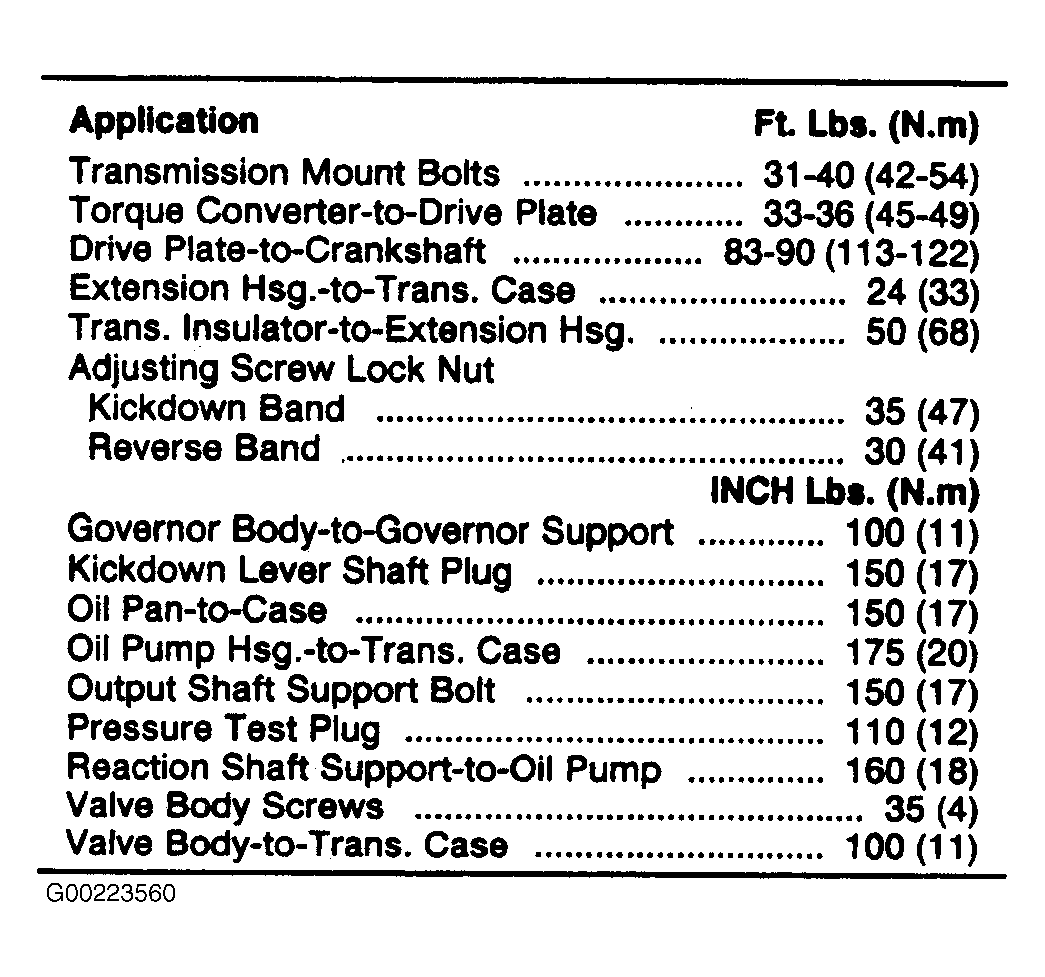

Fig 1: TIGHTENING SPECIFICATIONS Table

G00223560

Courtesy of CHRYSLER CORP.
