Wiring Diagrams

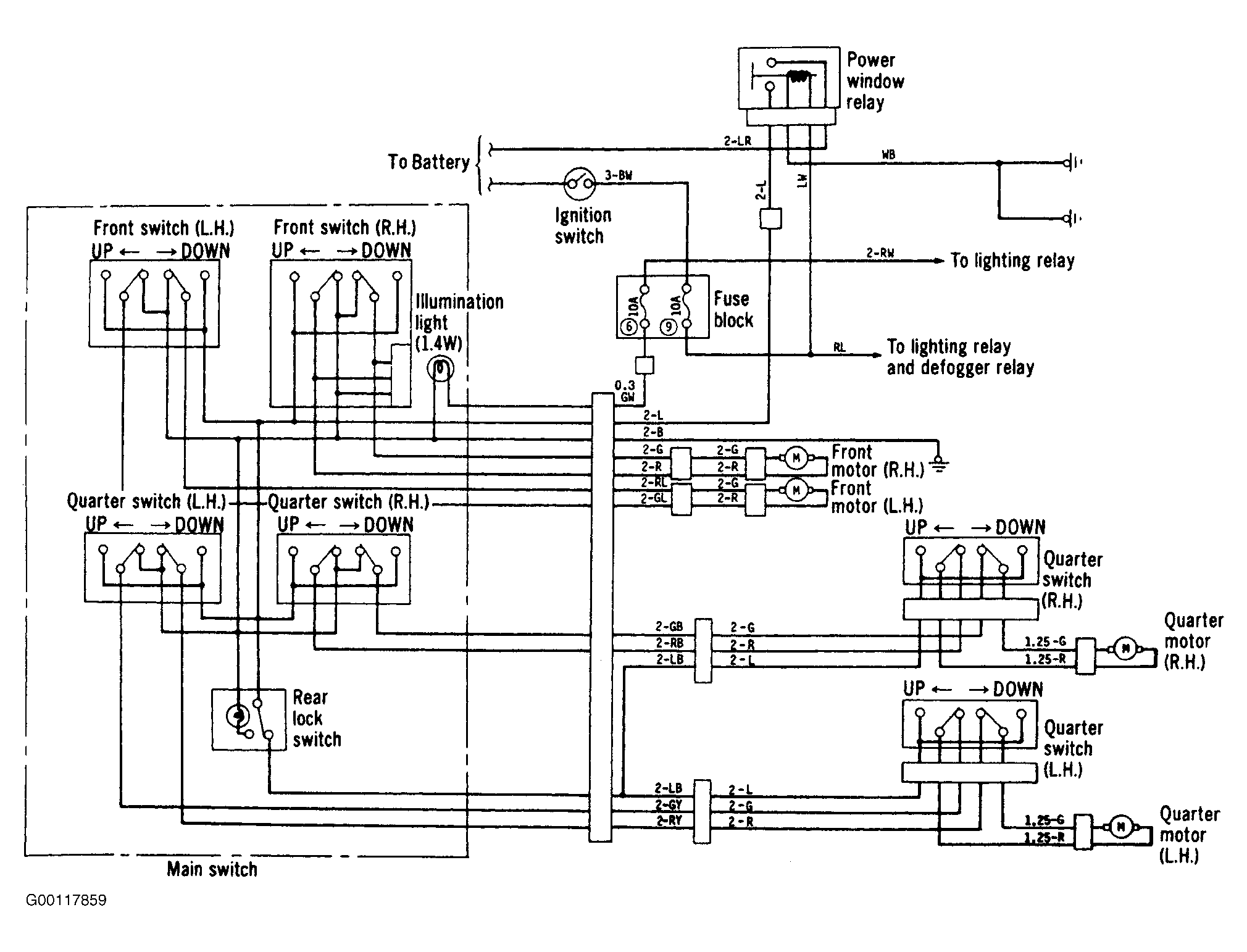

Fig 1: Power Window System Circuit Wiring Diagram

G00117859

Courtesy of CHRYSLER CORP.
