Mirror Motor
Mirror Motor
Using an ohmmeter, test for continuity between terminals as shown. Replace or repair as necessary. See
Fig 1
.

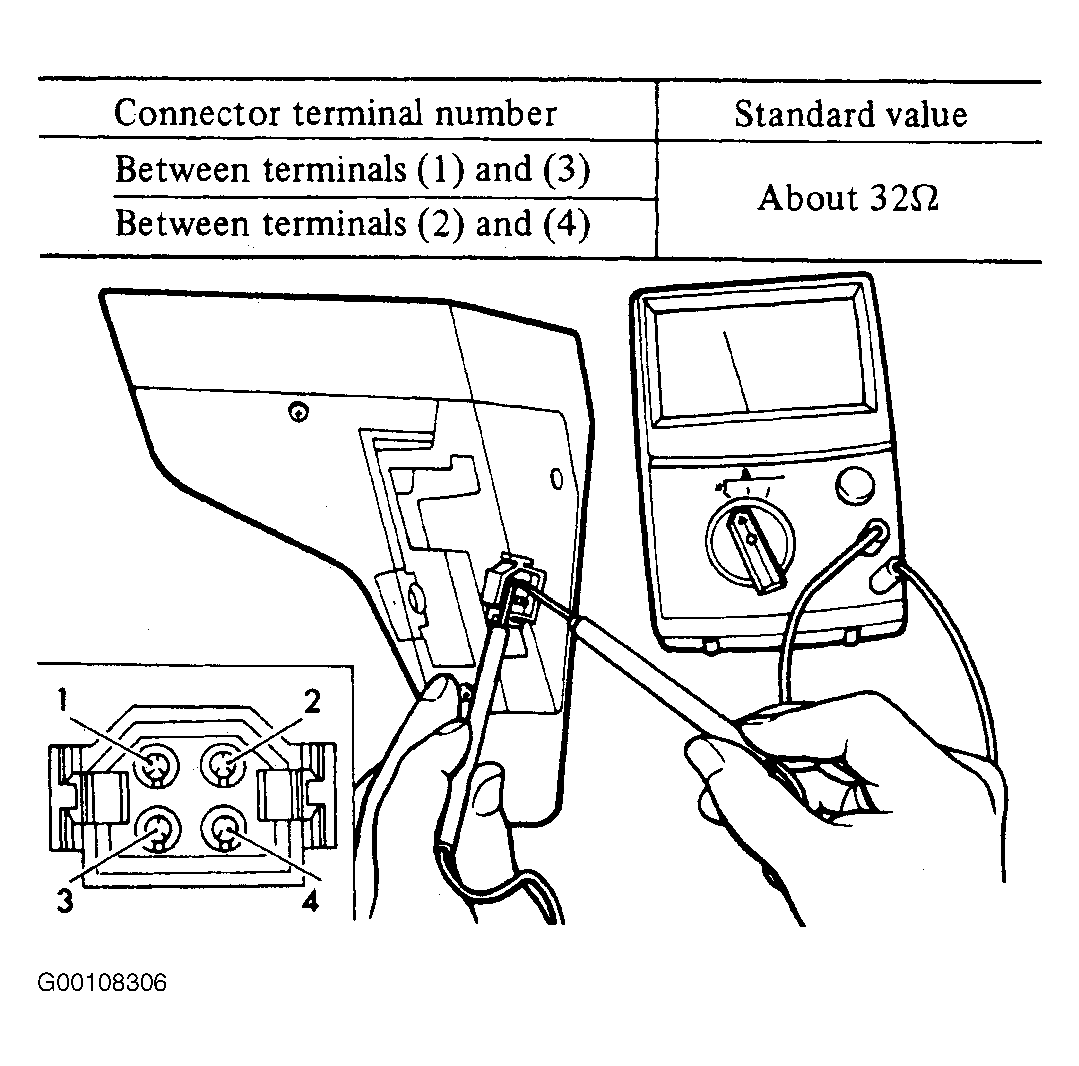

Fig 1: Measuring Mirror Motor Resistance
Courtesy of CHRYSLER CORP.
