Home >> Plymouth >> 1983 >> Colt Custom, 2D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Power Mirrors >> Component Tests >> Switch

Component Tests: Switch

Using an ohmmeter, test for continuity between terminals as shown. See Fig 1 .

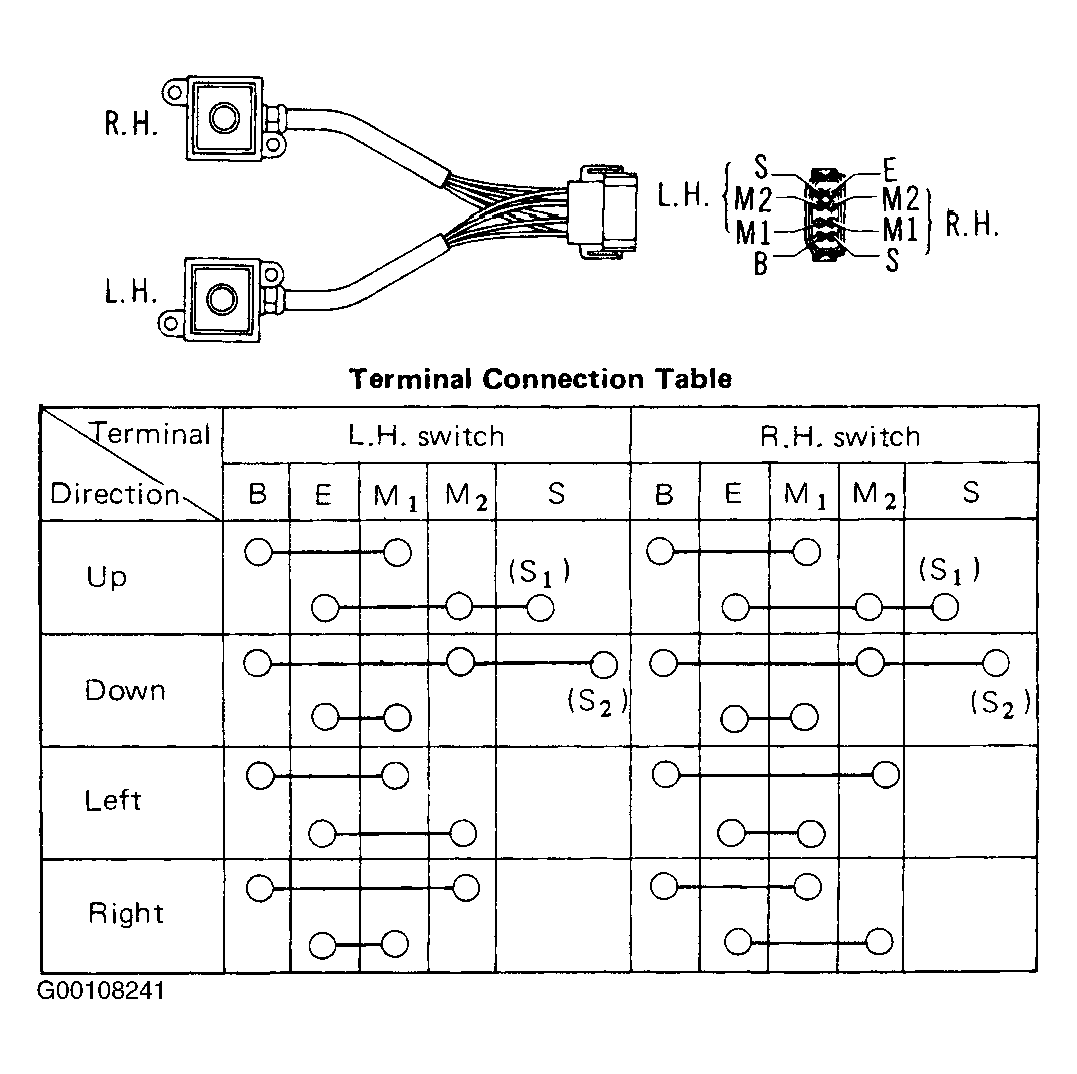

Fig 1: Switch Continuity Test
G00108241Courtesy of CHRYSLER CORP.
