Shift Linkage

Place selector in "N" position. Loosen set screw retaining handle to lever. Depress selector knob and turn handle to give .008-.035" (.2-.9 mm) clearance between selector lever end pin and detent plate. See Fig 1.

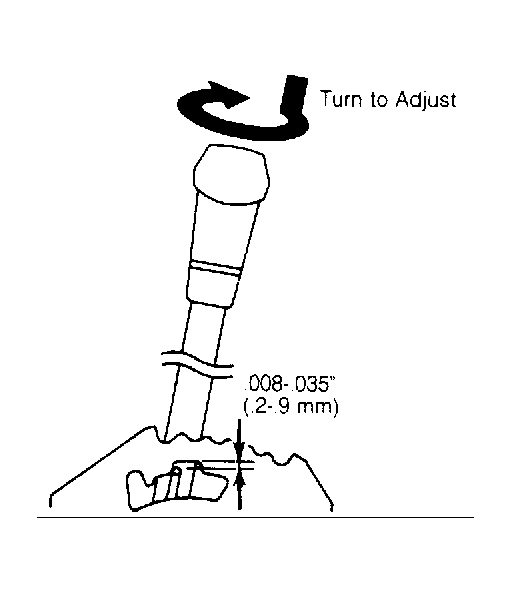

Fig 1: Adjusting Selector Lever On Mitsubishi KM170 Transaxle

To adjust, depress knob and turn handle.
When knob button is on driver's side, tighten set screw. With selector lever and neutral safety switch in "N" position, turn adjusting nuts at cable end until slack is removed from control cable.

NOTE: After adjustment, confirm that every selector position of position indicator is set properly and that selector position indicator turns "RED" on proper setting.
