Front Wiper Motor: Colt

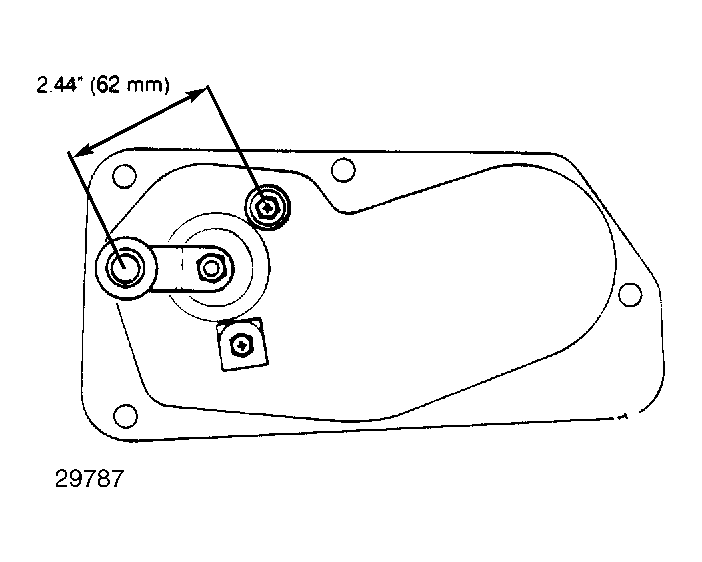

Run wiper motor against a rated load of 1 ft. lb. (.72 N.m). Check number of revolutions per minute. Current value should be correct for both low and high speeds. Make sure wiper motor park positioning is correct. See Fig 1 .
COLT WIPER MOTOR TEST
| Selected Speed | Motor RPM | Current (Amps) |
|---|---|---|
| Low | 42-52 | Less Than 3.0 |
| High | 62-76 | Less Than 4.0 |
