Fuel Level Adjustment

Check that fuel level is nearly in the middle of dot on sight glass (fitted on float chamber). If fuel level is either 0.16" (4 mm) above or below dot on sight glass window, fuel level is okay.

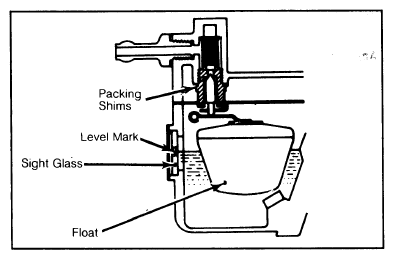

If float level is not within this specified range, adjust by increasing or decreasing the number of needle valve gaskets. See Fig 1.

Fig 1: Fuel Level Adjustment
Courtesy of CHRYSLER GROUP, LLC

Specified level is 0.16" (4 mm) above or below dot on sight glass window.
