Oil Pressure
50-64 psi@2000 RPM.

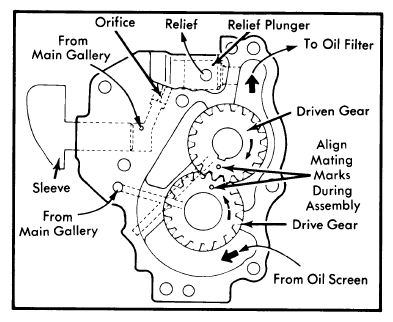

The 2.6L engine uses a gear-type oil pump with a force-feed lubrication system. Driven gear of oil pump also drives right silent shaft. See Fig. 13. For removal of oil pump, see SILENT SHAFTS .
OIL PUMP SPECIFICATIONS
| Application | Clearance |
|---|---|
| Gear-to-Housing | .0043-.0059" (.10-.15 mm) |
| Driven Gear-to-Bearing | .0008-.0020" (.02-.05 mm) |
| Driven Gear-to-Bearing (Oil Pump Body) | .0008-.0020" (.02-.05 mm) |
| Driven Gear-to-Bearing (Oil Pump Cover) | .0016-.0028" (.04-.07 mm) |
| Gear End Play | .0024-.0047" (.06-.12 mm) |
