Choke Unloader

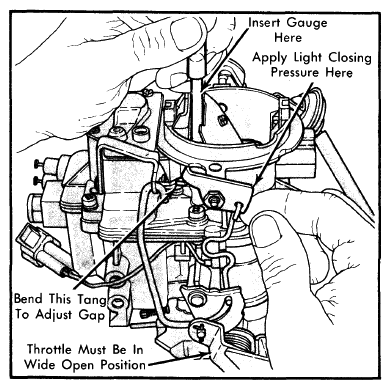

- Hold throttle valves in wide open position. Close choke valve by applying light closing pressure on choke control lever. See Fig 1.
- Measure choke unloader specified clearance between upper edge of choke valve and air horn wall. To adjust, bend choke unloader tang on accelerator pump lever.
