Servicing Components

Front axle assembly may be divided into four subassemblies: "I" beam axle, steering knuckles, steering linkage, and brake assemblies. It is not necessary to remove complete assembly to service steering linkage.

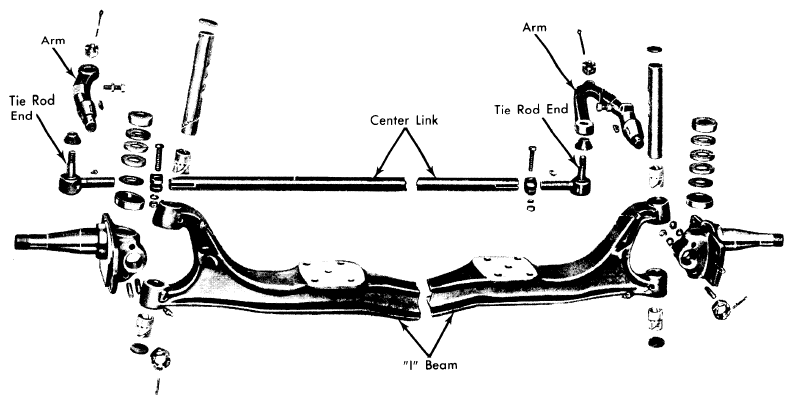

Fig 1: Disassembled View of Motor Home Chassis Steering Linkage (Linkage for Elliot Type Axle Shown)

Courtesy of CHRYSLER GROUP, LLC
