Wiring Diagrams

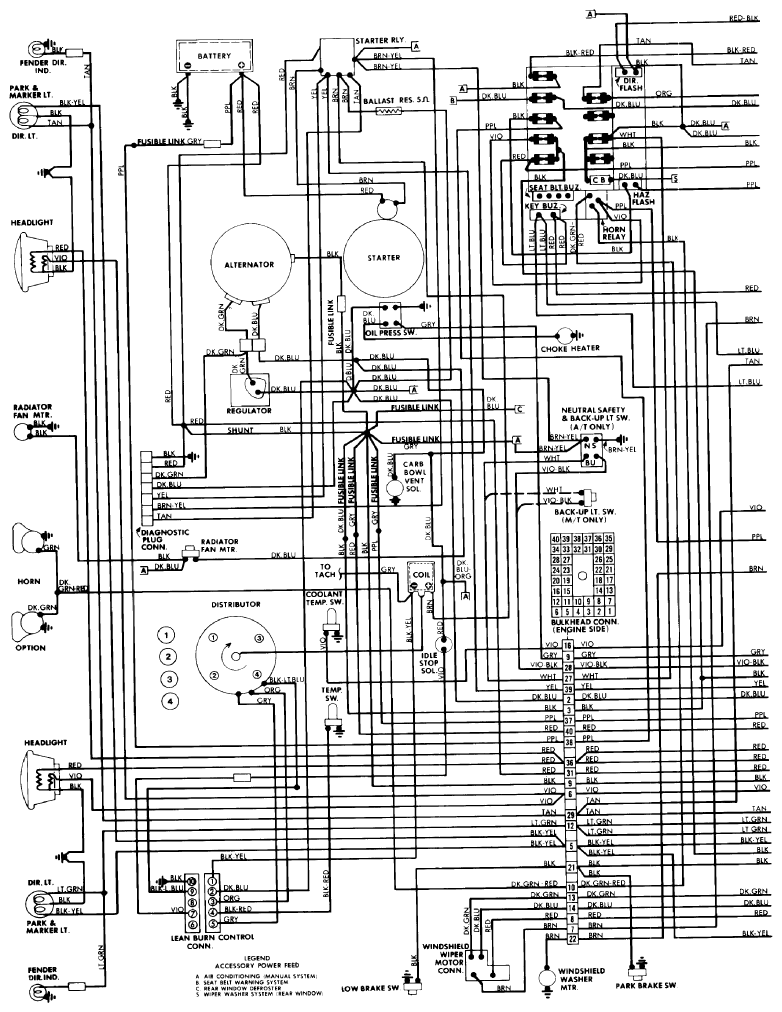

Fig 1: Wiring Diagrams - Omni Horizon (1 Of 2)

G09308763

Courtesy of AMERICAN MOTORS/RENAULT CORP.

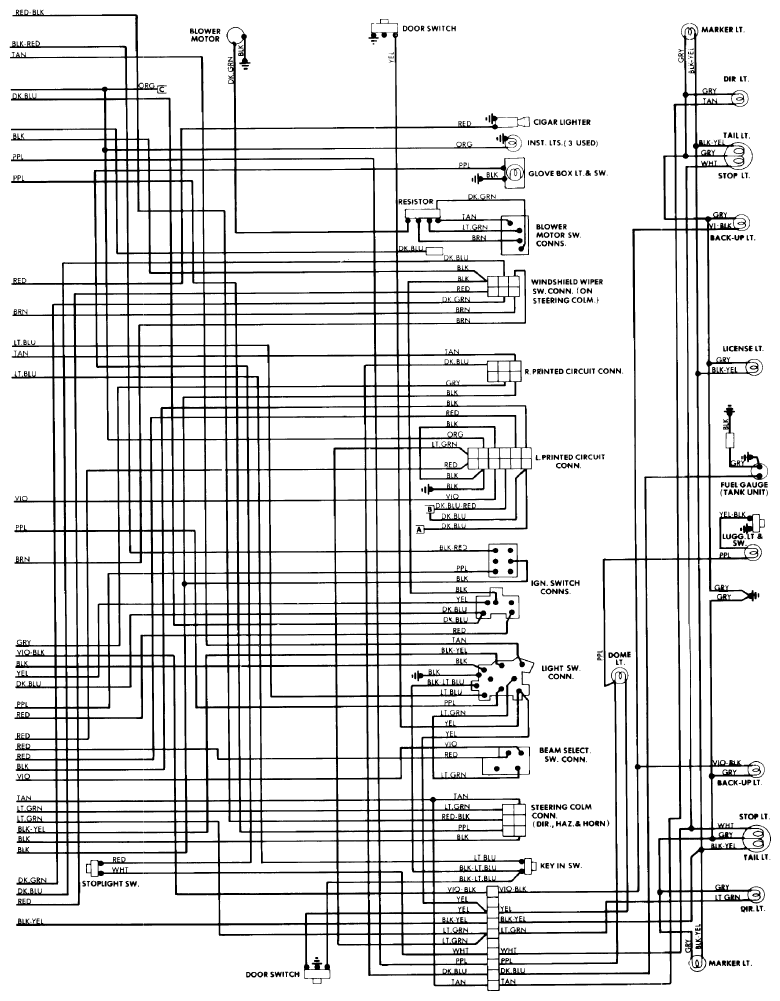

Fig 2: Wiring Diagrams - Omni Horizon (2 Of 2)

G09308764

Courtesy of AMERICAN MOTORS/RENAULT CORP.
