Wiring Diagram
Wiring Diagrams: Wiring Diagram

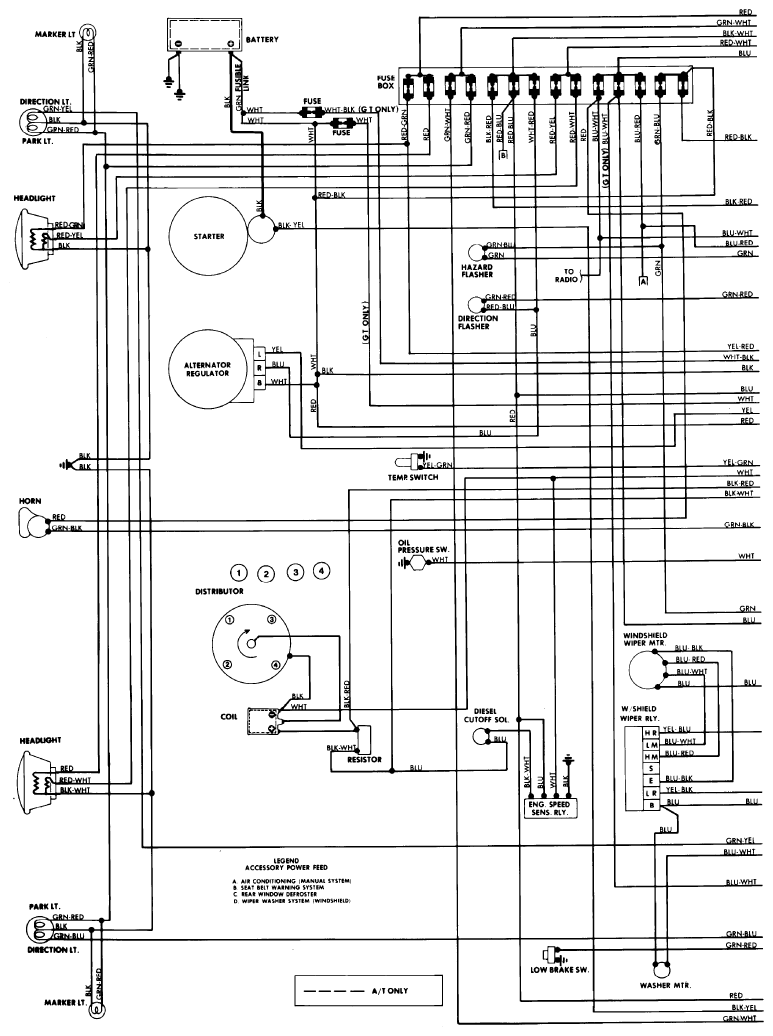

Fig 1: Wiring Diagram - Arrow (1 of 2)
Courtesy of CHRYSLER GROUP, LLC

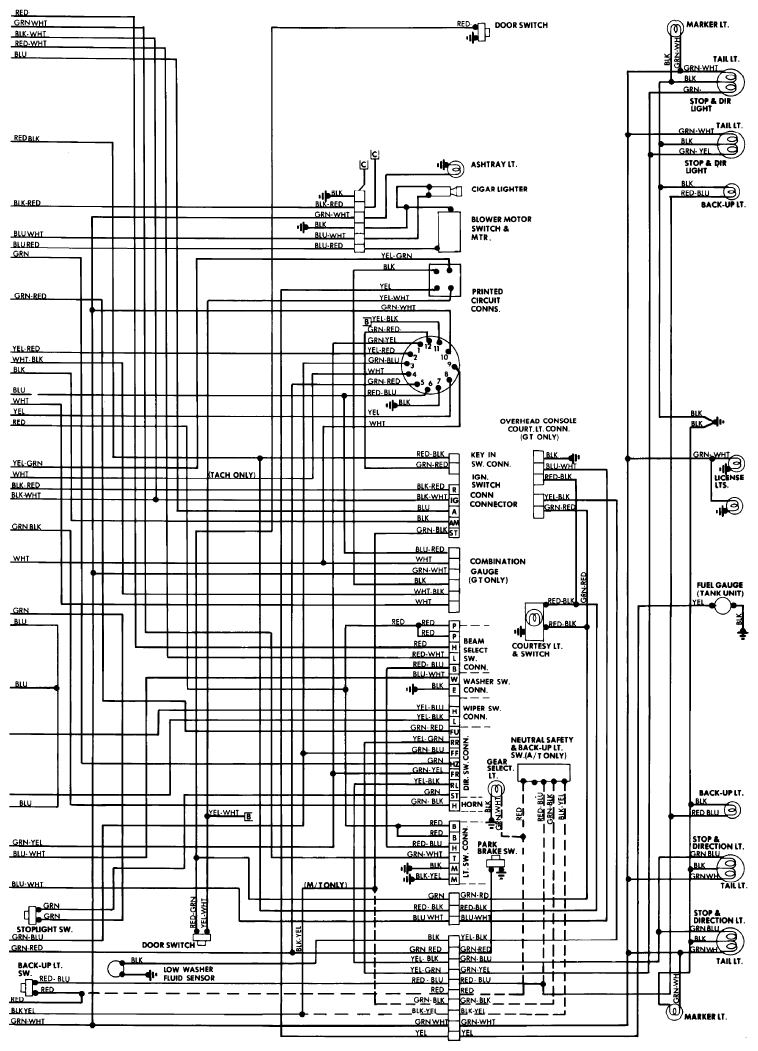

Fig 2: Wiring Diagram - Arrow (2 of 2)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
