Float Drop

With air horn removed, hold in upright position. Allow floats to hang. Adjust float tang. Bottom edge of float should be parallel with gasket surface of air horn. See Fig 2.

Fig 1: Adjusting Float Level

Courtesy of CHRYSLER GROUP, LLC

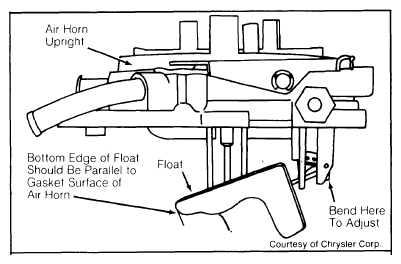

Fig 2: Adjusting Float Drop

Courtesy of CHRYSLER GROUP, LLC
