Accelerator Pump

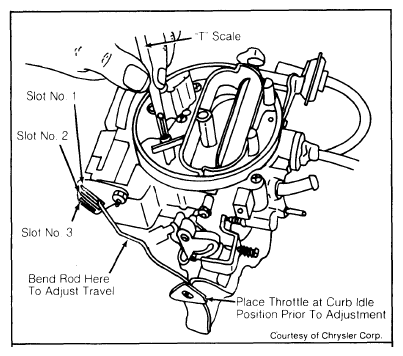

- Place throttle lever in curb idle position. Ensure accelerator pump rod is in No. 1 slot in throttle lever. See Fig 1.
- Using a scale, measure drop (travel) of accelerator pump plunger from curb idle toward open throttle position. If travel is not to specification, bend operating rod. See Fig 1.
Courtesy of CHRYSLER GROUP, LLC
