Float Setting

NOTE: When measuring float setting, be sure that weight of float only is forcing needle on seat.

With air horn inverted measure clearance between top of float and float stop (see Specifications ). Drill or gauge must be perfectly level when measuring. Bend float lip as required if adjustment necessary.

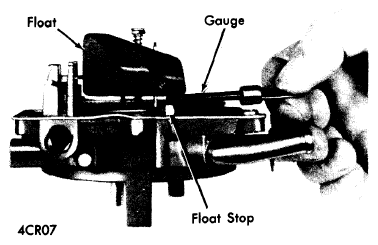

Fig 1: CHECKING FLOAT LEVEL SETTING

Courtesy of CHRYSLER GROUP, LLC
