Alternator Regulators - Electronic Regulator: Adjustment

The Electronic Voltage Regulator cannot be adjusted. If specifications are not obtained and investigation has proved that the rest of the electrical system is not at fault, regulator must be replaced.

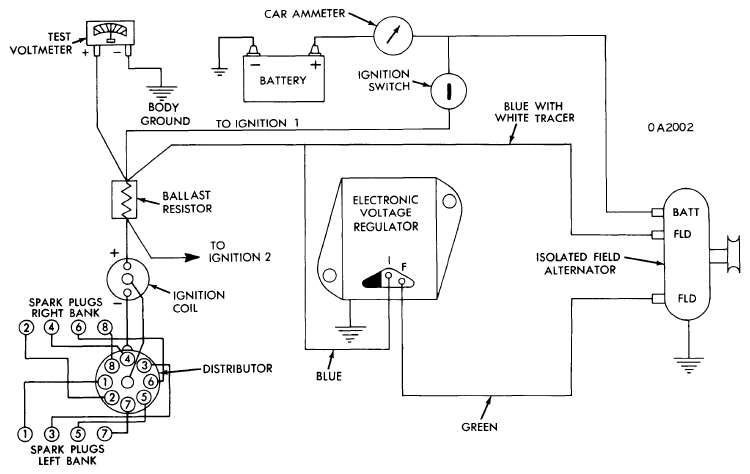

Fig 1: Voltage Regulator Test Connections
G09333232Courtesy of CHRYSLER GROUP, LLC
