Accelerating Pump

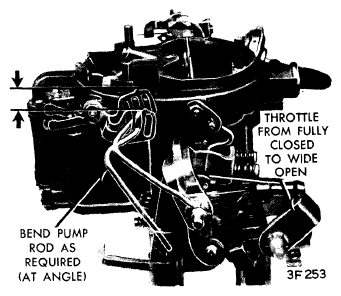

With throttle valves fully closed, pump travel from fully closed to fully open positions should be as indicated in "Specification Table", measured at small raised boss near connecting rod end of pump lever. To adjust, bend pump rod at right angle bend.
NOTE:
Pump rod must be installed in center slot of pump arm.
