Float Level

With air horn and bowl cover removed, invert carburetor so that weight of floats only is holding inlet needle against seat (hold finger on retainer to fully seat float fulcrum pin). Use suitable gauge or "T" scale to measure from top edge of fuel bowl to crown of each float at center (see Fig 1). If float setting not correct (see Specifications ), remove float and bend float lever lip as required.

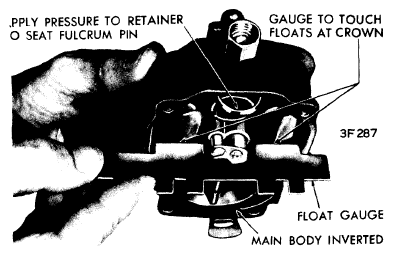

Fig 1: FLOAT LEVEL ADJUSTMENT

Courtesy of CHRYSLER GROUP, LLC

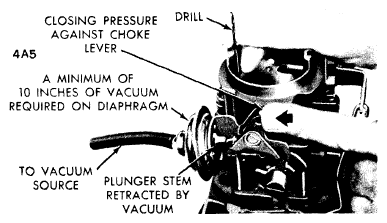

Fig 2: VACUUM KICK ADJUSTMENT

Courtesy of CHRYSLER GROUP, LLC

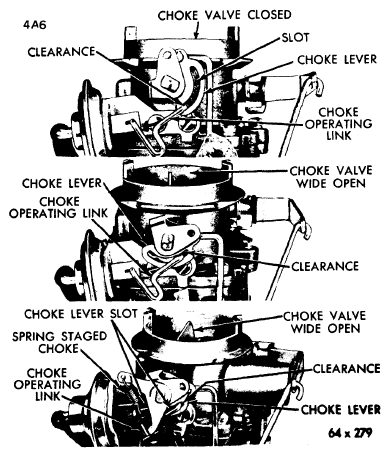

Fig 3: CHOKE OPERATING LINK CLEARANCE (WITH VACUUM KICK)

Courtesy of CHRYSLER GROUP, LLC

CAUTION: Do not attempt to adjust float without removing if from carburetor (inlet needle has synthetic rubber tip which may be compressed sufficiently to cause a false setting).
