STROMBERG WWC 2-Barrel: Adjustment: Unloader

With choke valve held lightly closed, open throttle valves to wide open position. Clearance between top edge of choke valve and wall of air horn should be correct (see Specifications ). Adjust by bending tang (long narrow extension) on throttle lever. Check to make certain throttle valves open fully and close freely with choke valve wide open.

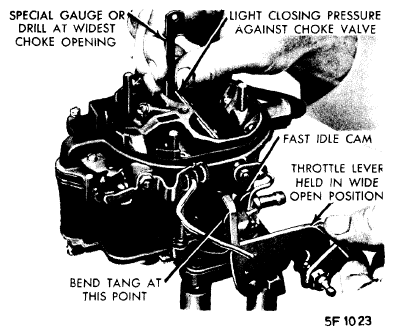

Fig 1: UNLOADER ADJUSTMENT (TYPICAL)

Courtesy of CHRYSLER GROUP, LLC
