Repair and Diagnosis: Transmission: Clutches: Description

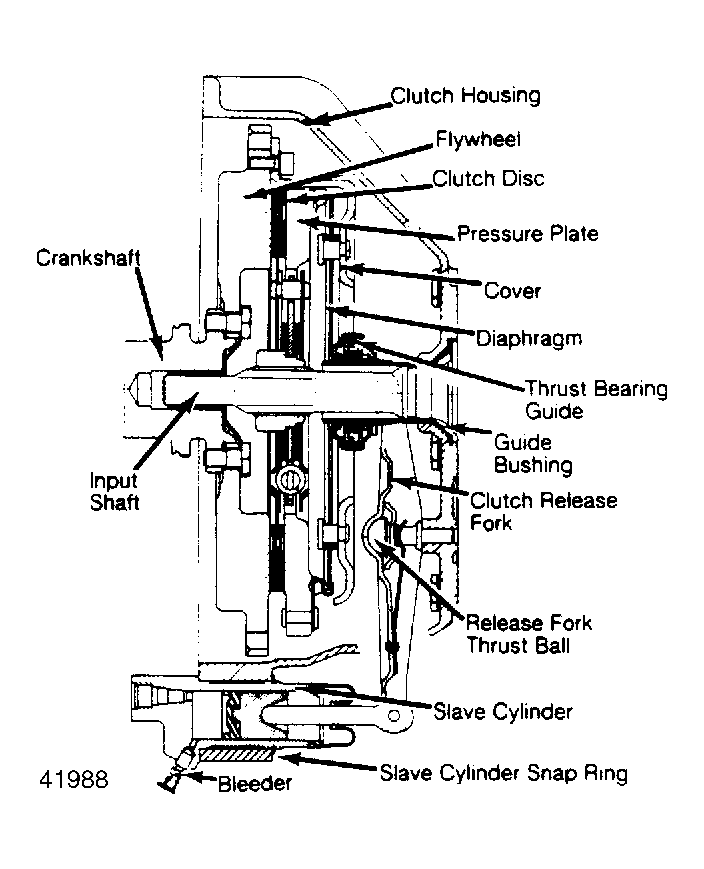

Clutch is a dry, single disc, diaphragm spring type. Clutch actuation is hydraulic, using a firewall mounted master cylinder and a bell housing mounted slave cylinder.
A prelubricated clutch release bearing is also used. Due to hydraulic system design, no adjustments, with the exception of bleeding hydraulic system, is necessary.
