Idle Speed
- Idle is adjusted on a warm engine after the engagement of the clutch fan. Check that accelerated idle stop is not in contact with throttle lever and that accelerator cable is released.

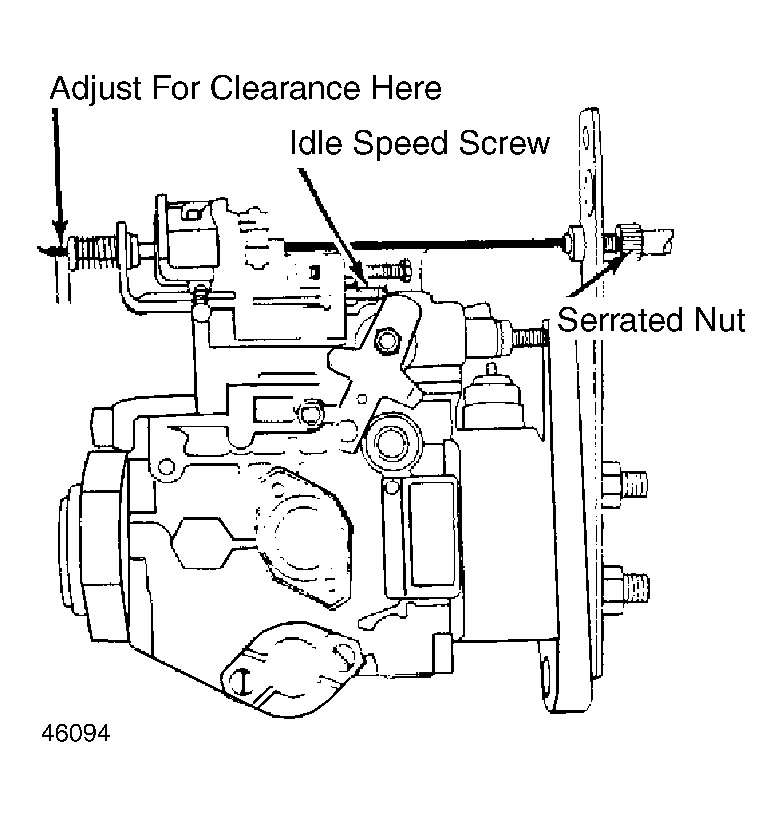

- Adjust the set screw to obtain proper RPM. See Fig 1 . Turn fast idle cable sleeve nut to obtain a clearance of .04" (1 mm) between fast idle cable end and fast idle stop.
- Start engine and warm to operating temperature. Compress the fast idle stop and check idle speed. Engine speed should be 1200-1400 RPM. Adjust if necessary. Adjust cable and clearance.
IDLE SPEED SPECIFICATIONS
| Application | Idle RPM | |
|---|---|---|
| 504 & 505 Diesels | ||
| With A/C | 830-860 | |
| Without A/C | 780-830 | |
| 505 & 604 Turbo Diesels | ||
| With A/C | 830-860 | |
| Without A/C | 780-840 | |
