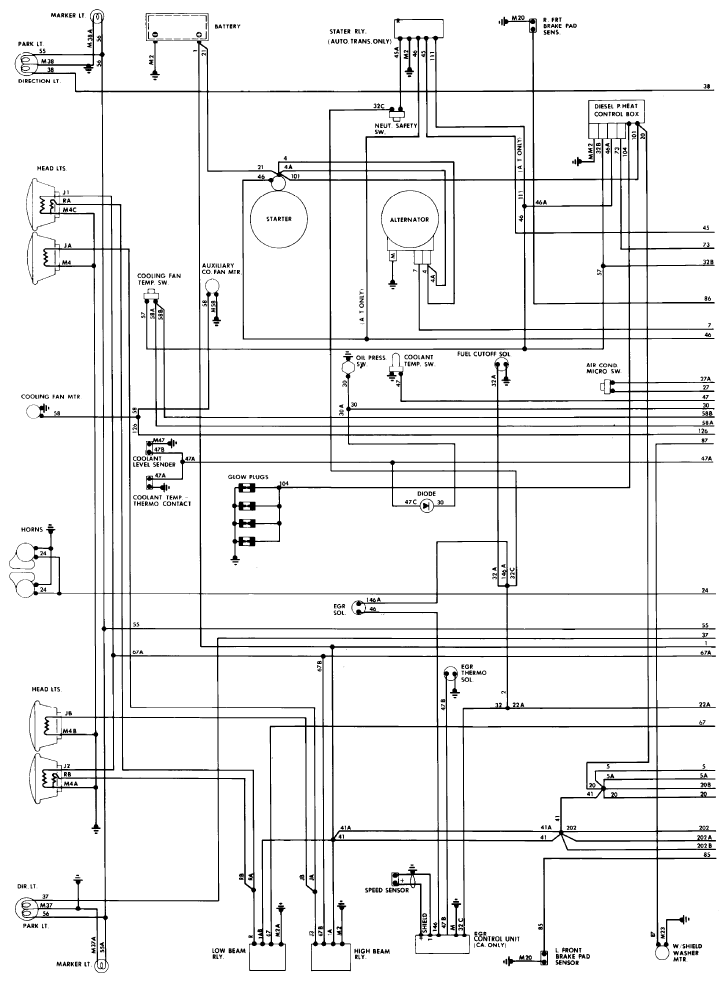

Fig 1: Wiring Diagram - Peugeot 604 TURBO DIESEL (1 of 4)
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
