Idle Speed Adjustment

  1. Idle is adjusted on a warm engine after the engagement of the clutch fan. Check that accelerated idle stop is not in contact with throttle lever and that accelerator cable is released.

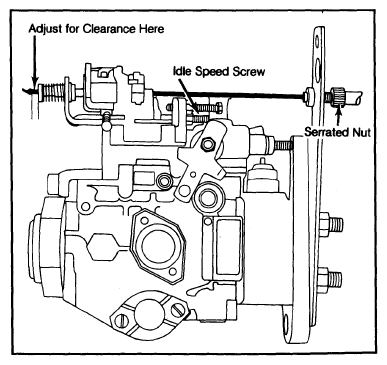

    Fig 1: Diesel Idle Adjustment Locations
    G09314289Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
  2. Adjust the set screw to obtain proper RPM. See  Fig 1 .  Turn fast idle cable sleeve nut to obtain a clearance of 0.04" (1 mm) between fast idle cable end and fast idle stop. Start engine and warm to operating temperature. Compress the fast idle stop and check idle speed. Engine speed should be 1200-1400 RPM. Adjust if necessary. Adjust cable and clearance.
    IDLE SPEED SPECIFICATIONS

    Application Idle RPM
    504, 505 Diesel
      With A/C 830-860
      Without A/C 730-830
    505, 604
      Turbo Diesel
      With A/C 830-860
      Without A/C 780-840
