1979 Models

  1. Detach vacuum hose from EGR valve and connect an outside vacuum source, such as hand pump with gauge. Apply about 4 in. Hg and hold this level. Vacuum should not leak down.
  2. While applying vacuum, watch movement of valve stem. At 4-5 in. Hg, stem should move diaphragm to full up position. If valve does not respond as indicated, it must be replaced.

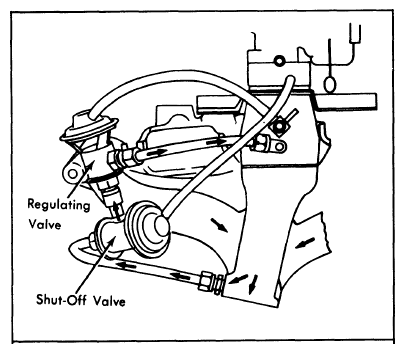

Fig 1: 1974 EGR System (California)
G09310134Courtesy of NOT AVAILABLE
