Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the radio to the IP.
  2. Connect the electrical connectors to the radio.
  3. Connect the radio antenna cable to the radio.
  4. Position the radio rear alignment locator (1) into the IP substrate.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  5. Install the 3 screws that retain the radio to the IP.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)  or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE)  or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Chevrolet)  or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Oldsmobile)  in Instrument Panel, Gages and Console.
  7. Install the lower closeout/insulator panel (GMC only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) LOWER (GMC/CHEVROLET)  in Instrument Panel, Gages and Console.

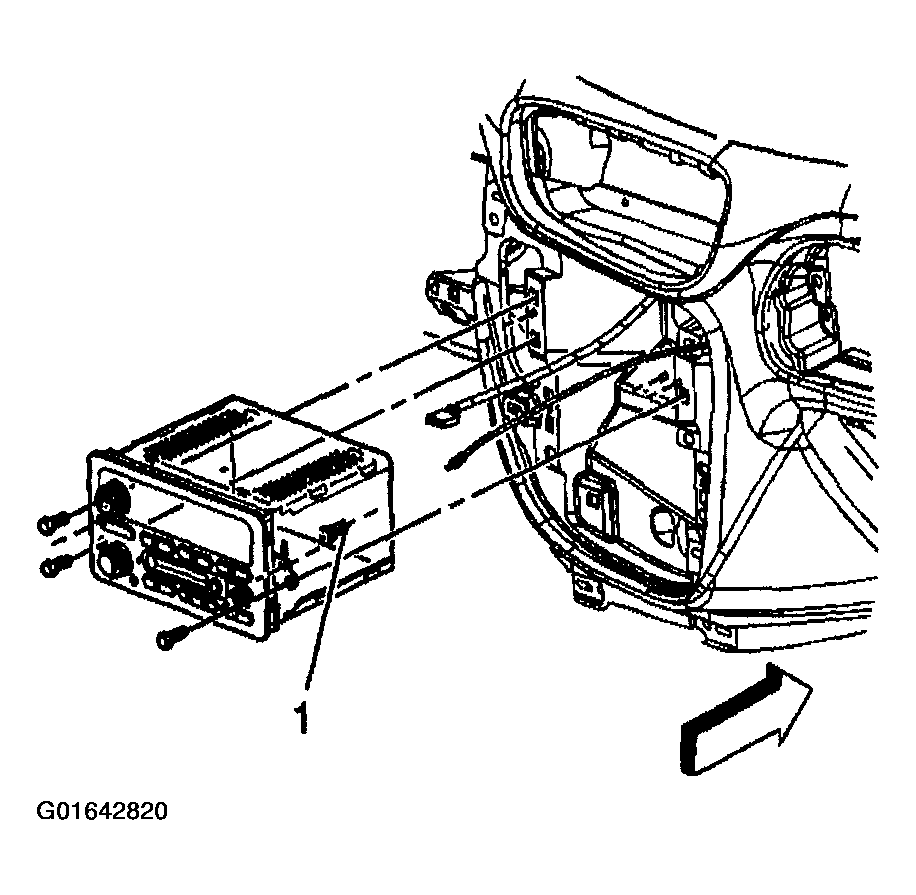

    Fig 1: Positioning Radio To IP
    G01642820Courtesy of GENERAL MOTORS CORP.
  8. Install the center console shift lever bezel (Oldsmobile only). Refer to CONSOLE SHIFT LEVER BEZEL REPLACEMENT (OLDSMOBILE)  in Instrument Panel, Gages and Console.
