Fuel Hose/Pipes Routing Diagram

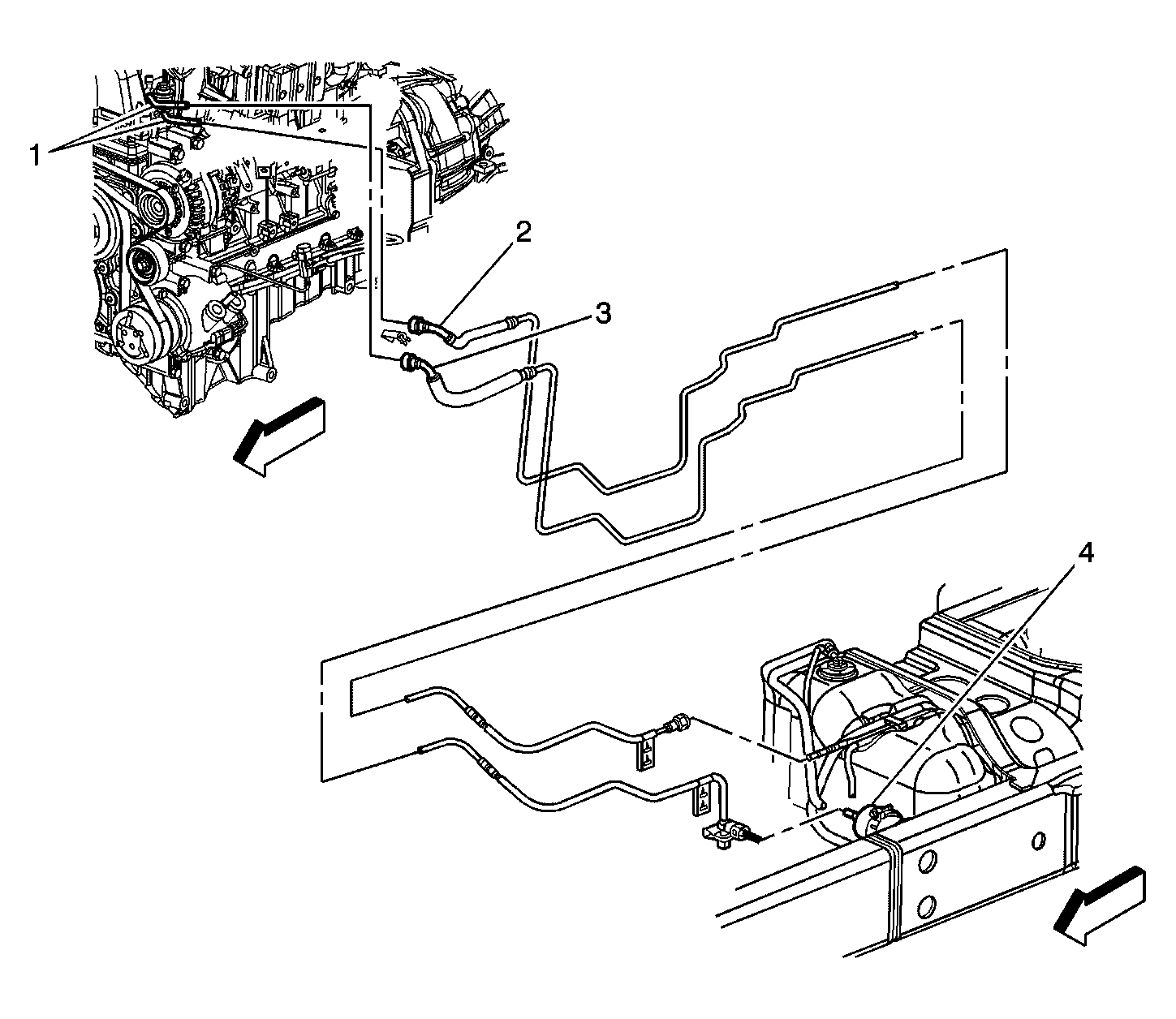

Fig 1: Fuel Hose/Pipes Routing Diagram
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Engine Compartment Fuel Pipes
2
Fuel Return Pipe
3
Fuel Feed Pipe
4
Fuel Filter
