Installation Procedure

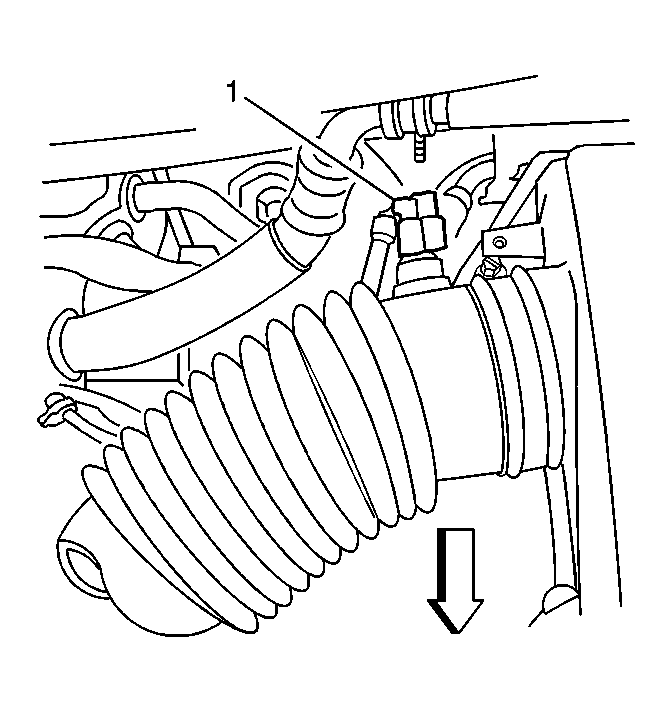

    Fig 1: Disconnecting/Connecting IAT Sensor Electrical Connector
    GM732048Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor (1) to the air duct with a pushing and twisting motion.
  2. Reconnect the IAT sensor electrical connector.
